產品特色

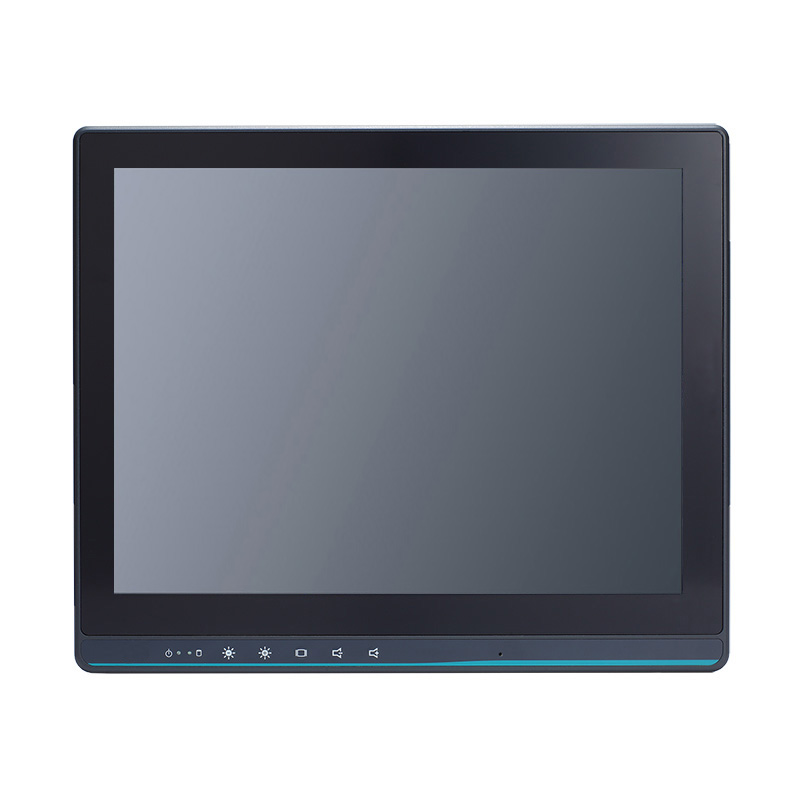

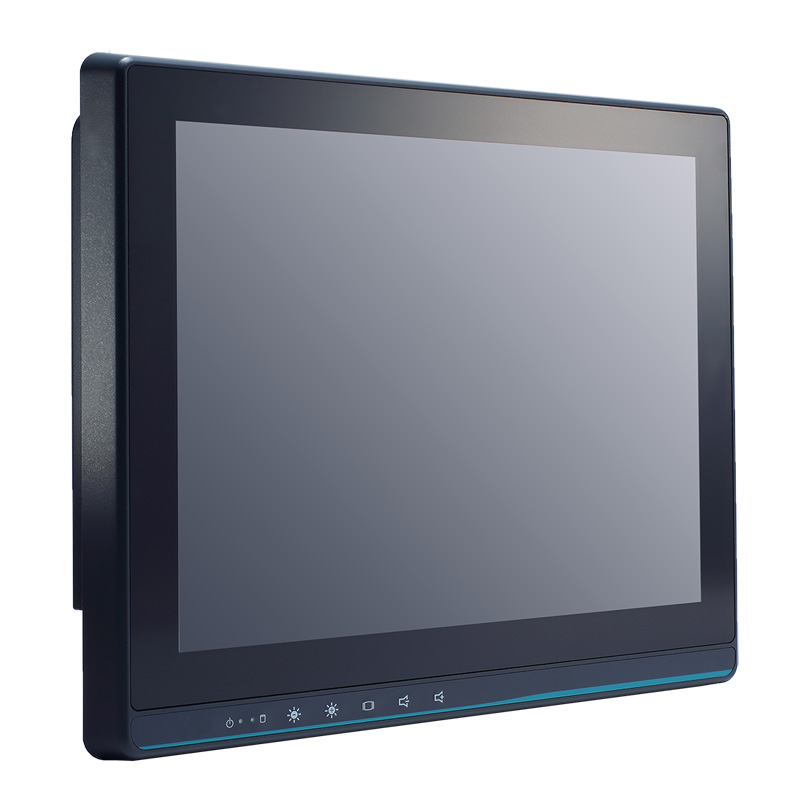

- 15" XGA TFT LCD display with LED backlight
- Fanless design with Intel® Celeron® processor N3350 or Intel® Pentium® processor N4200

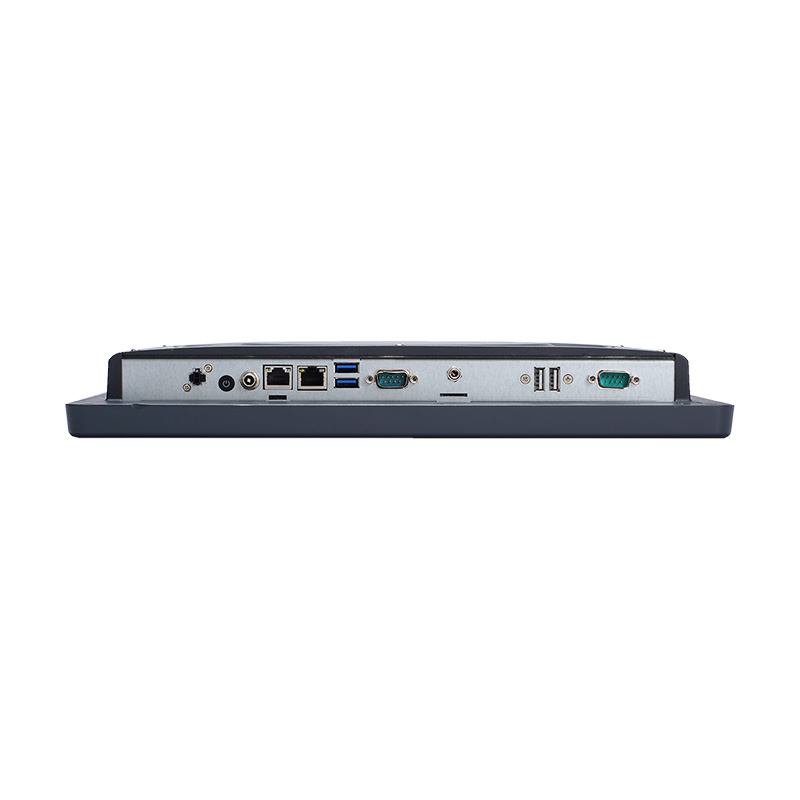

- 2 GbE LAN, 4 USB, and 2 COM
- IP65-rated plastic front bezel
- Supports RFID and wireless module (optional)
- External AT/ATX mode selection switch
- Easy access storage & RAM design
- Supports panel mount, wall mount, VESA arm, and desktop stand
- RS-232/422/485 with RI/5V/12V selectable by BIOS
- Programmable OSD function key
產品簡介
The SBC84622 supports an onboard low power AMD LX800 500 MHz processor with the AMD Geode CS5536 chipset. The flexible display function is supported by integrated graphics controller which allows users to configure both CRT and LVDS LCD or CRT and TTL LCD as simultaneous mode. Onboard one DDR SODIMM supports up to 1GB of system memory. Having such compact design with fanless operation, the SBC84622 can be applied in widely embedded and automation applications such as industrial automation, automation control, telecommunication, and process control.
