• Ultra low power Intel® Atom™ processor Z510/ Z530
• Intel® System Controller Hub US15W
• 1 COM and 5 USB 2.0 (1 client port) supported
• LVDS LCD supported
• 1 PATA and 1 CompactFlash™
• 1 10/100/1000Mbps Ethernet
• Minimum 9 Watt power requirement

產品簡介

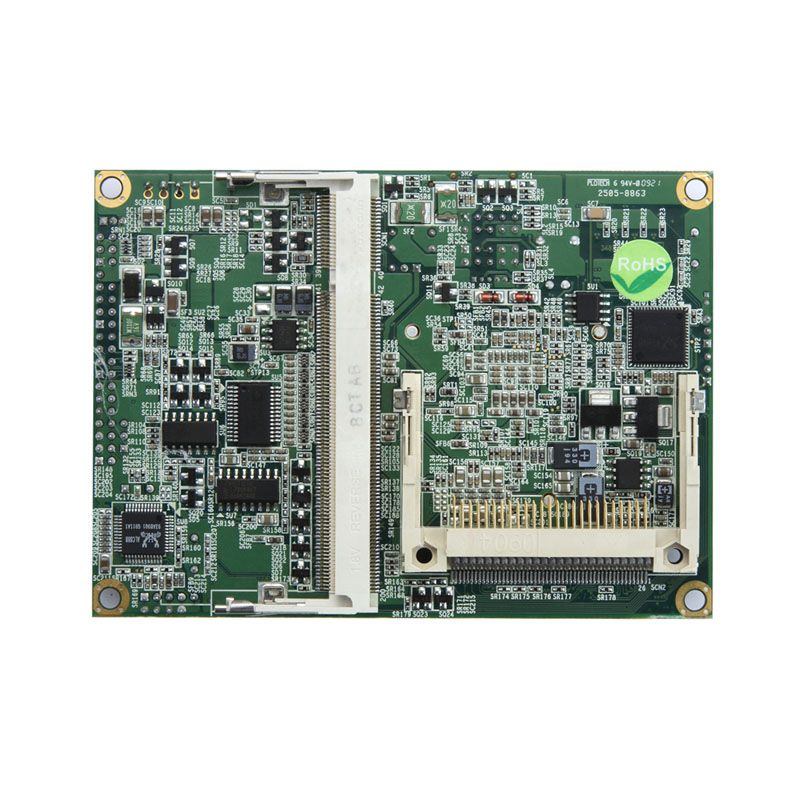

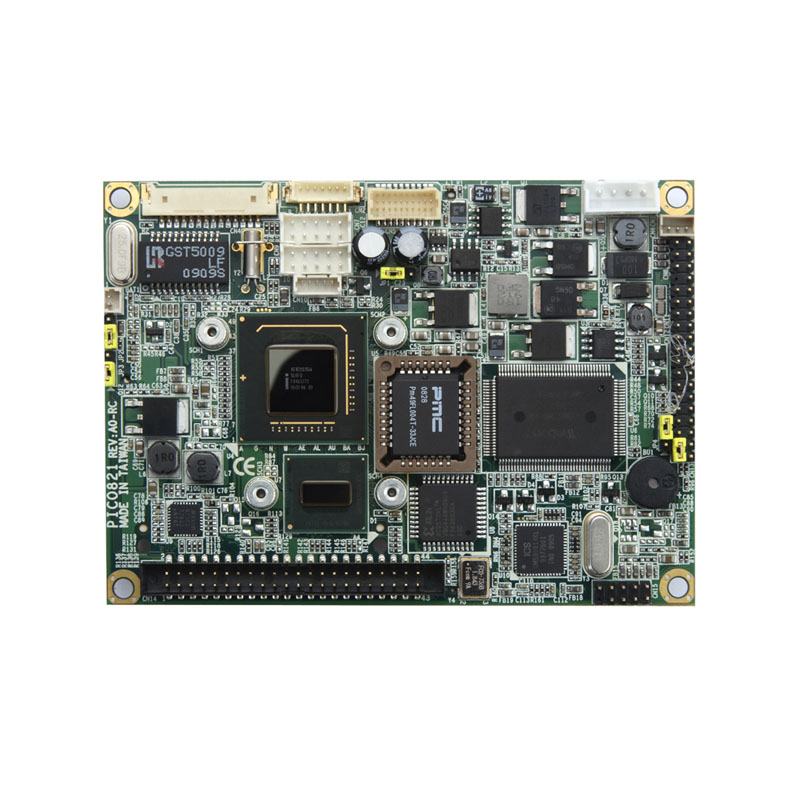

Axiomtek's PICO821 Pico-ITX SBC supports ultra low power Intel® Atom™ processors Z510 1.1GHz and Z530 1.6GHz at 400/533 FSB with the Intel® System Controller Hub US15W. The PICO821 is an incredibly small 10 x 7.2 cm embedded board based on Pico-ITX form factor, the world's smallest x86 embedded board. Instead of built-up a full set of I/O connectors soldered onto the board edge, the PICO821 provides internal connectors for COM, Gigabit Ethernet, USB, audio, video and more, which provides embedded developers with flexibility. This extreme small form factor embedded platform can meet today's customers' need of fanless operation, low-power consumption, compact-size, flexibility and versatile I/O. Its applications include in-vehicle PCs, in-flight entertainment systems or industrial automation systems, and even ultra portable devices.

• PICO821LGA-Z510 (P/N-E38H821100)
  Pico-ITX SBC with Intel® Atom™ processor Z510 1.1 GHz, LVDS, PATA, 10/100/1000Mbps Ethernet, CF and DVI-D kit
• PICO821LGA-Z530 (P/N-E38H821102)
  Pico-ITX SBC with Intel® Atom™ processor Z530 1.6 GHz, LVDS, PATA, 10/100/1000Mbps Ethernet, CF and DVI-D kit
