• Socket M for Intel Core™2 Duo/ Core™ Duo/ Celeron M processor up to 2.33 GHz
• Intel® 945GME+ICH7M-DH chipset
• Dual 10/100/1000 Ethernet ports
• 6 USB 2.0 and VGA ports
• 4 COM ports
• Supports PCIe & PCI expansion slots
• DC to DC power supply supports 18V to 28V

產品簡介

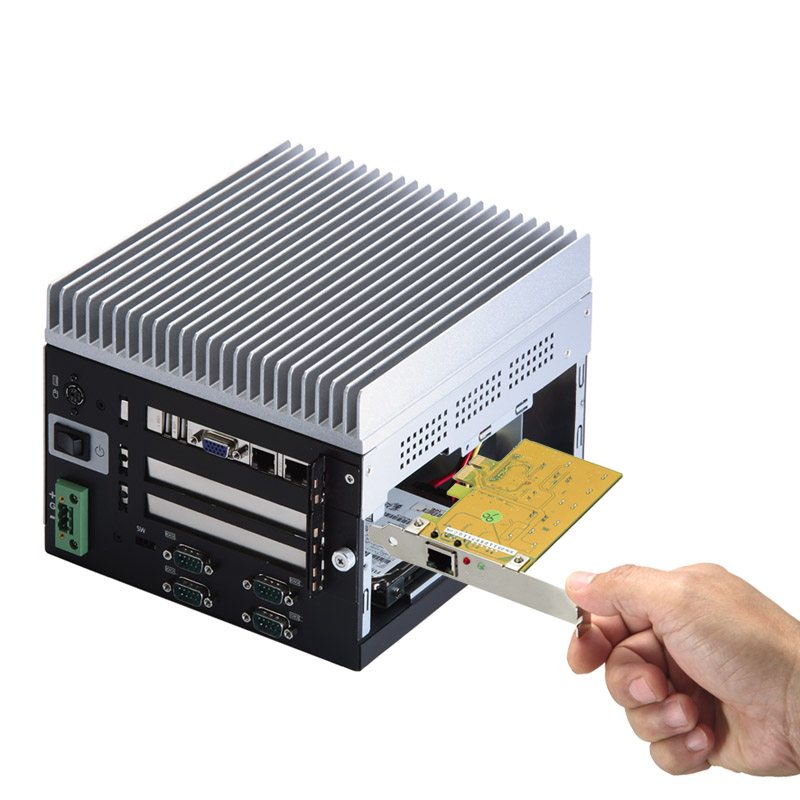

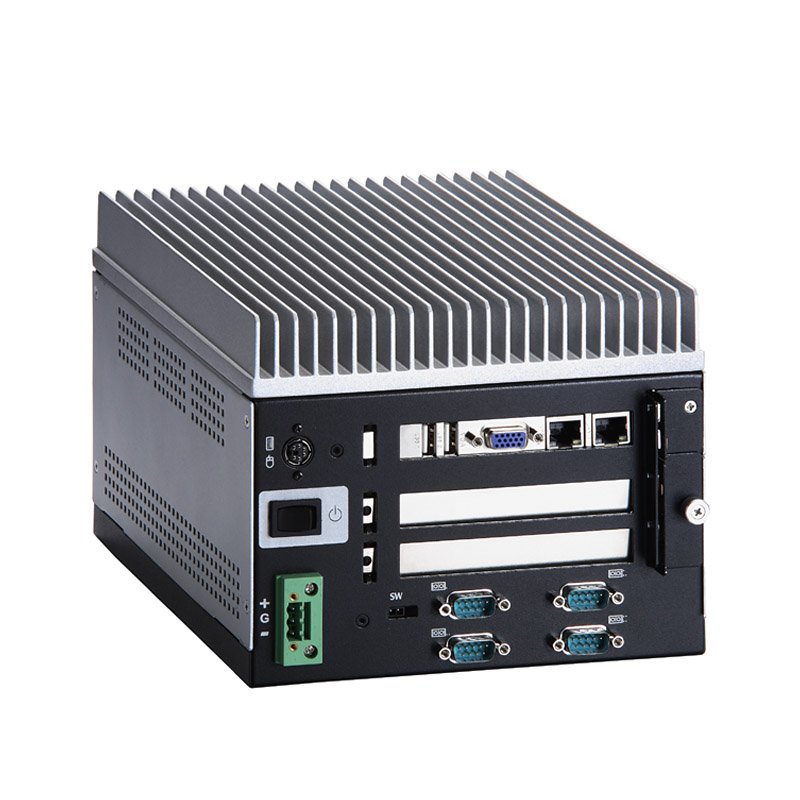

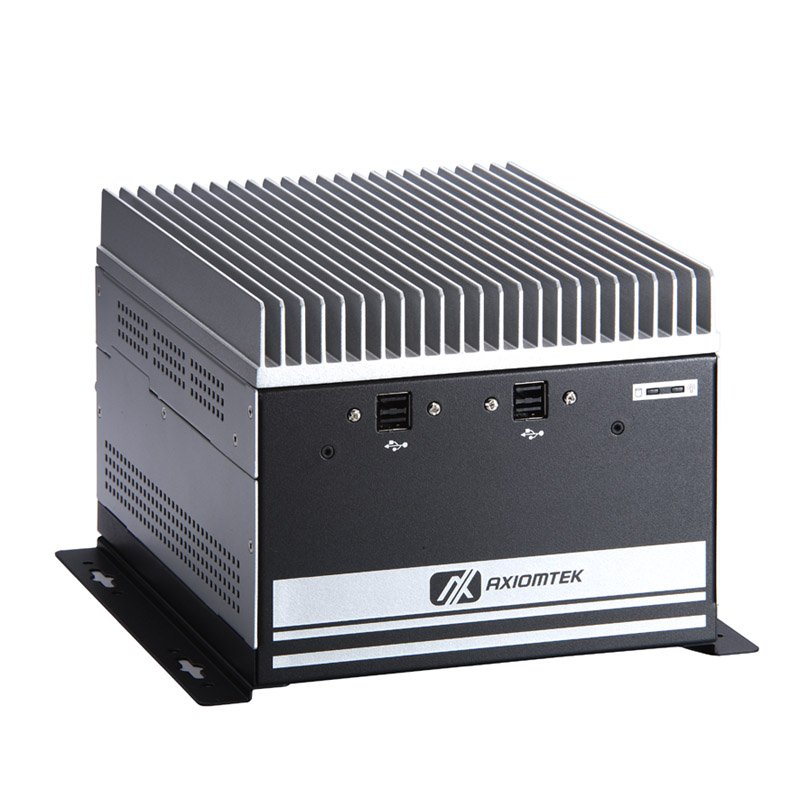

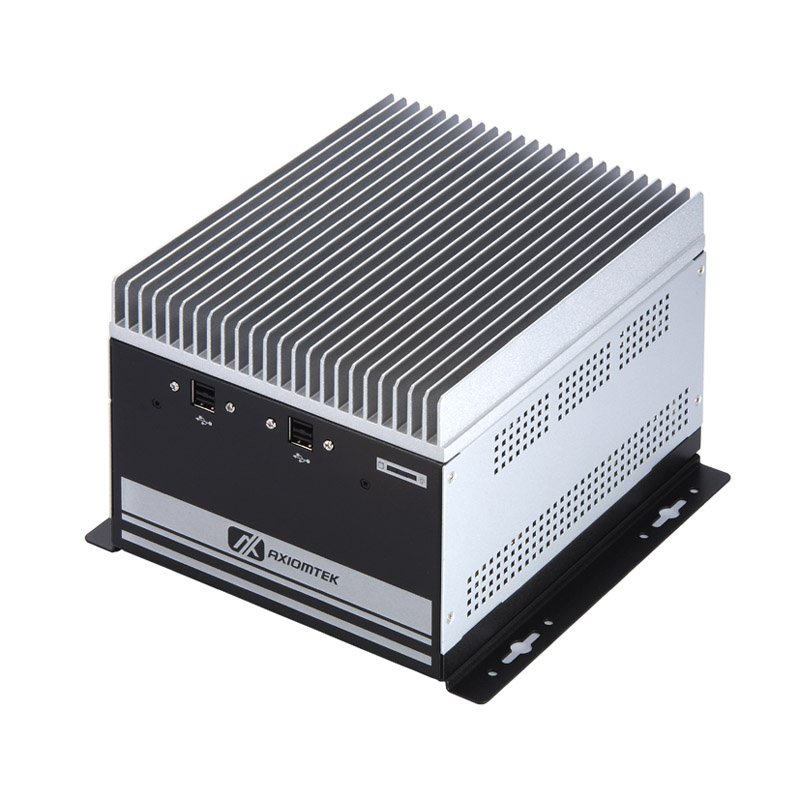

The compact yet high performance embedded computer, the IPC910H has been upgraded to support wider expansions, which now offers a choice between two combinations of slots: (1) two PCI Express slots or (2) one PCI slot plus one PCI Express slot. Built on Intel® 945GME chipset, the IPC910H supports a socket M Intel® Core™2 Duo processor with two DDR2 533/667 SODIMM sockets up to 4GB memory. The integrated Intel® Graphics Media Accelerator 950 offers enhanced graphics and increased I/O bandwidth. The fanless design and unique thermal solution empowered the IPC910H to operate without noise and work reliable in critical environments at temperature from -5° C to 45° C. This compact-size rugged industrial barebone system is a powerful all-in-one embedded box PC with great expansion capability especially suitable for industrial automation, kiosk/POI, AOI, and vehicle applications.

• IPC910H-P/HAB100 (P/N- E26G910100)
  Socket M Intel® Core™2 Duo fanless system with PCIe slot and DC-in ATX 120W P/S
• IPC910H-D/HAB100 (P/N- E26G910101)
  Socket M Intel® Core™2 Duo fanless system with PCIe slot,DC-in ATX 120W P/S and AC-DC 90W power adapter and US power cord
• IPC910H-P/HAB103 (P/N- E26G910102)
  Socket M Intel® Core™2 Duo fanless system with PCI & PCIe slots and DC-in ATX 120W P/S
• IPC910H-D/HAB103 (P/N- E26G910103)
  Socket M Intel® Core™2 Duo fanless system with PCI & PCIe slots, DC-in ATX 120W P/S and AC-DC 90W power adapter and US power cord
