• Intel Atom™ processor Z520PT 1.33 GHz onboard
• Intel® US15WPT chipset
• Fanless operation
• Operating temperature range of -40XC ~ +65XC
• 1 isolated RS-232/422/485 and 1 isolated CAN bus (optional for RS-232/422/485)
• High performance DDR2-667 SODIMM max. up to 2 GB
• One 2.5" swappable SATA drive bay and one CompactFlash™ slot
• 3 internal PCI Express Mini Card slots with one SIM slot

產品簡介

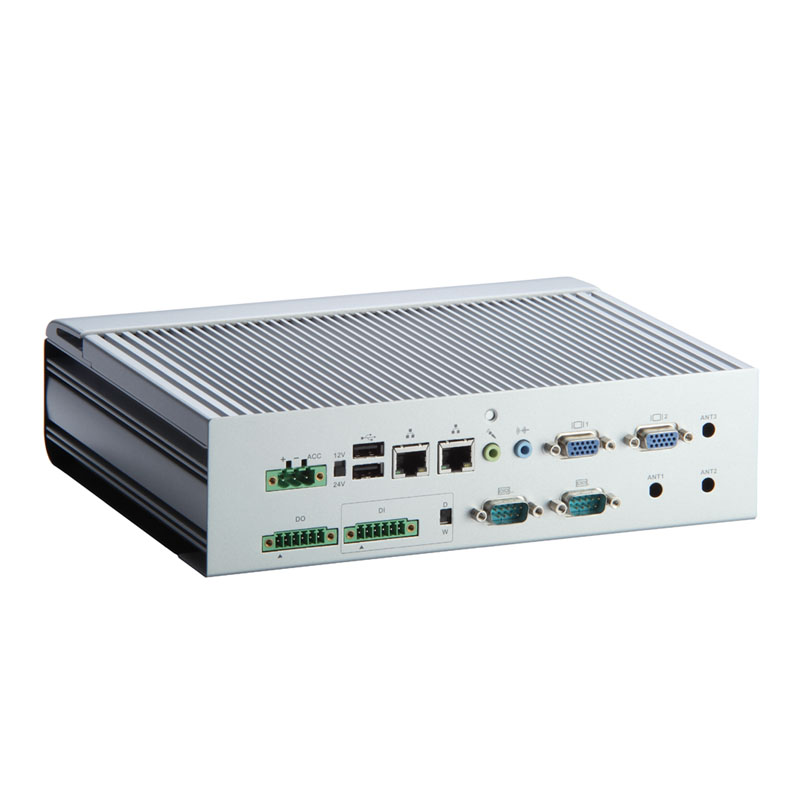

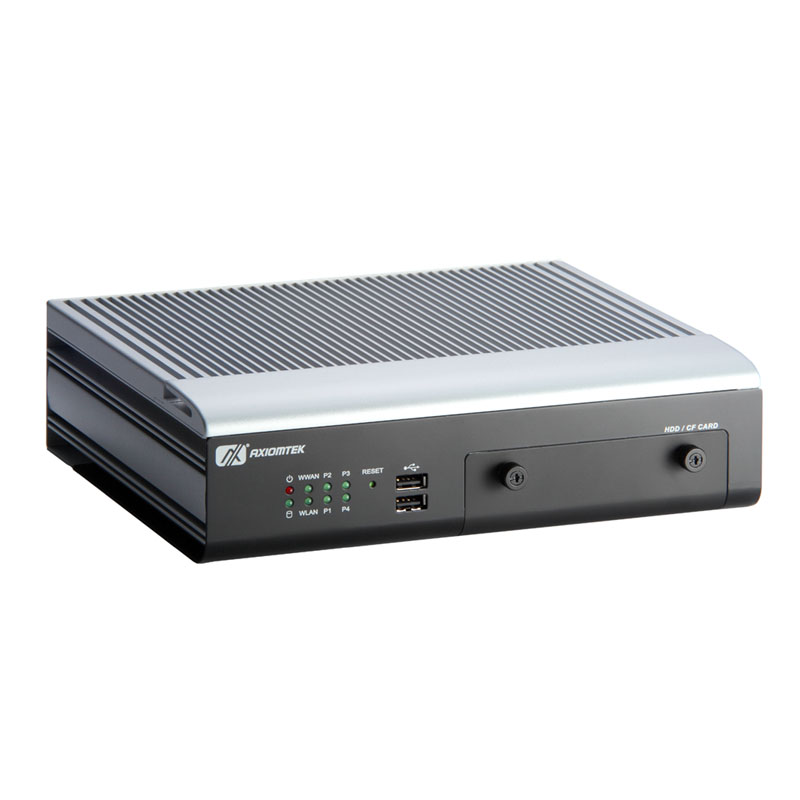

The rugged all-in-one tBOX311-820-FL is certified with an eMark for in-vehicle equipment and it is ISO-7637 certified for vehicle power requirement. In addition, the embedded system supports 80W intelligent vehicle power supply for any in-vehicle environments. The tBOX311-820-FL offers one isolated CAN bus port for use in vehicles to connect engine control unit, and 1 isolated COM port for various other device connectivity. The swappable and front-accessible CompactFlash™ socket and HDD drive bay is convenient for easy maintenance and system upgrade. This compact unit adopts an IP40-rated and rugged aluminum & cold-rolled steel enclosure. Its significant anti-vibration design can endure up to 2Grms (with CF & HDD). To withstand extreme working temperatures, its fanless operation design has a unique thermal solution that allows it to operate noiseless at temperatures ranging from -40XC to +65XC.

• tBOX311-820-FL1.33GCAN
  Fanless embedded system with Intel® Atom™ Z520PT 1.33 GHz processor, 2 VGA, CF & HDD support, 2 10/100/1000Mbps,1 RS-232/422/485, 1 CAN and 4 USB
• tBOX311-820-FL1.33GCOM
  Fanless embedded system with Intel® Atom™ Z520PT 1.33 GHz processor, 2 VGA, CF & HDD support, 2 10/100/1000Mbps, 2 RS-232/422/485 and 4 USB
• 2.5" SATA HDD
  40 GB or above
• DDR2 SODIMM
  512 MB or above
• CompactFlash
  1 GB or above
• 3G module
  826K3101010E
• Wifi module
  826K3101050E
• Wifi+Bluetooth
  826K3101060E
• GPS module
  82606200270E
• Graphic accelerator codec
  826K3101070E
