Introduction

An Continuous Belt-type Furnace is used widely in the heat treatment of hardware tools, metal wires, and other machine parts. It uses a PC-based solution, HMI package, not only to perform fully automated continuous process control but also to remotely supervise and monitor in factory functions. The system consists of ten-stage thermo control in this furnace, including pre-heating, quenching, tempering and warning thermo controls.

It is furnished with a hot blast motor to rotate the temperature in the furnace to make uniform temperature and steady quality. Digital I/O logic control for furnace safety, I/O mechanism and analog I/O logic control for feeder equipment and continuous conveyor speed and diffusion of carbon control can be fulfilled. Formula management allows users to set-up batch & control parameters into a recipe and guideline database. This supports on-line recipes downloads, uploads, and recipes save function from an external Microsoft Access database format.

Related Products

Industrial Panel Computers

Axiomtek's PANEL1000 series is the industrial panel computers which adopt Intel® Core™2 Duo, Pentium® M, Pentium® 4 processors for high computing capability to satisfy customer's demands. Features include front accessible USB ports, a back door design for easy maintenance and upgrade, SAW (Source Acoustic Wave) touch screens and most O.S. support.

Industrial Computer Chassis

Axiomtek's industrial chassis are flexible, easily managed, and feature solid designs. Different chassis form factors are available according to specific customer needs.

Data Acquisition & Control Cards

Axiomtek's PC-based DA&C cards are capable of fully and swiftly receiving natural analog/digital signals via an RC filter and scaling, sending signals to the host PC for processing calculation, analyzing, and recording. Users can use popular developing tools, such as VB, VC, or BCB Delphi to develop different programs to meet the requirements of each application. PC-based DA&C cards are cost effective, flexible, and can easily analyze applications.

Advantages

Axiomtek's industrial automation solutions combine superior design with the latest technology:

Cost-effective: very reasonable prices with high reliability and performance

Easy Integration: open architecture allows simple integration 4/6 Axis Motion Card

Incredible Communication: with Ethernet and other communication interfaces, no network or database connection will suffer

Control: remote and central control processes are easily integrated

Simple Set-up and Alarms: with fast parameter settings, production analysis, and an alarm message display, the system will be up and running in no time

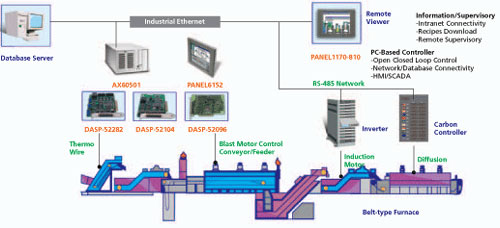

Application Diagram
