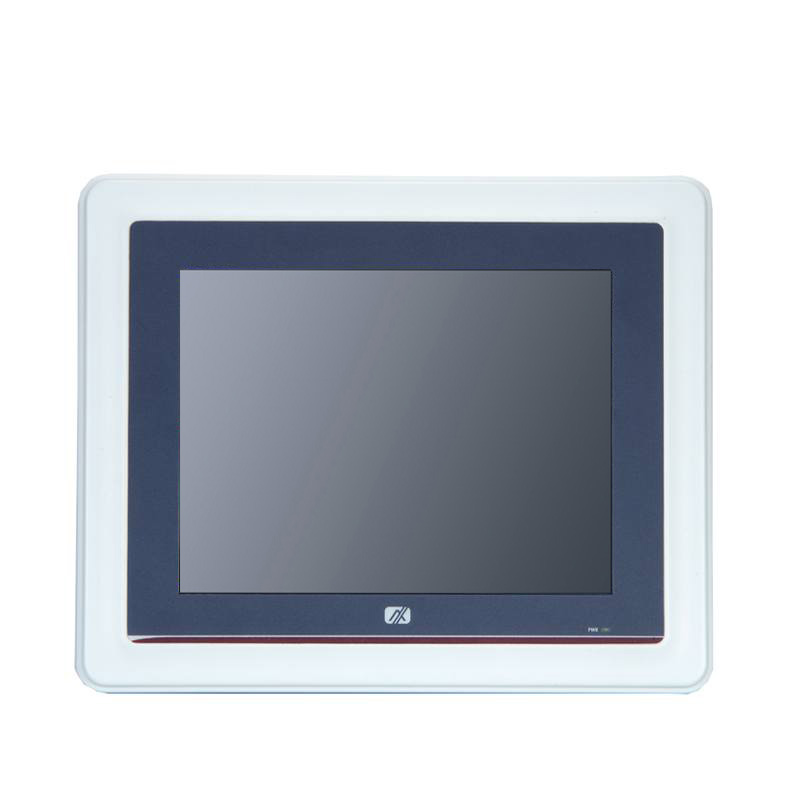

8.4" Fanless Touch Panel PC with Intel Celeron N3060

LCD Panel	8.4" SVGA TFT LCD with LED backlight 350 nits 800 x 600
CPU	Intel® Celeron® processor N3060 up to 2.48 GHz
Chipset	SoC integrated
System Memory	1 x 204-pin SO-DIMM DDR3L-1600, up to 8GB
BIOS	AMI

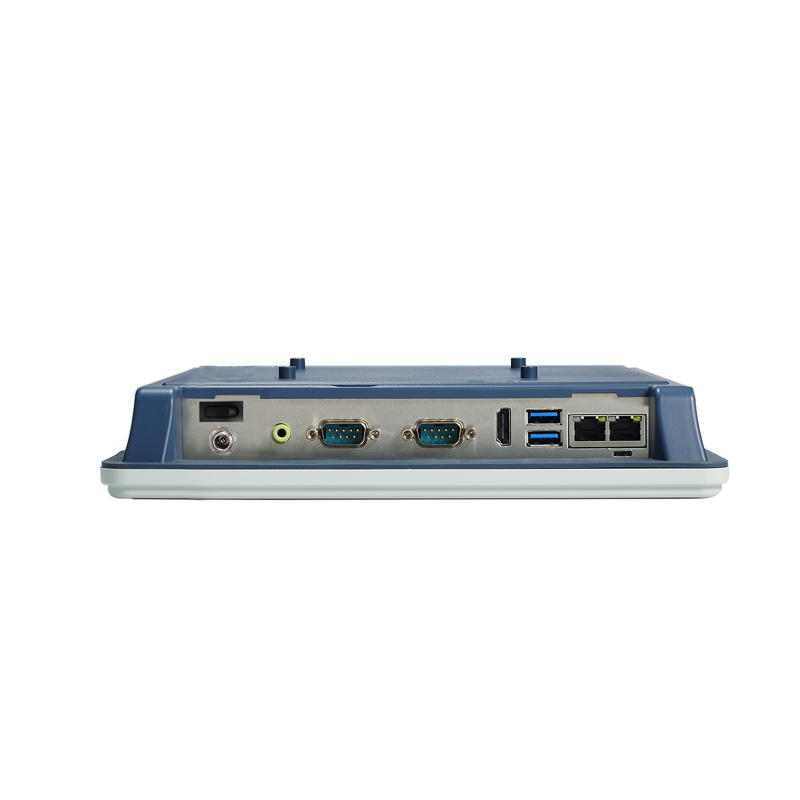

COM	1 x RS-232 1 x RS-232/422/485 (default RS-232)
USB	2 x USB 3.0
Ethernet	2 x 10/100/1000 Mbps (Intel® I210AT)
Display	1 x HDMI
Audio	1 x Audio (Line-out)
Storage	1 x mSATA
Expansion	1 x Full-size PCI Express Mini Card slot with mSATA 1 x Full-size PCI Express Mini Card slot with SIM
Others	1 x Switch for power On/Off 1 x AT/ATX mode selection switch
Touchscreen	Resistive type
Front Bezel	IP65, NEMA 4 rugged protection, plastic front bezel
Power Supply	9 to 36 VDC with over current protection fuse
Power Comsumption	25W
Watchdog Timer	255 levels, 0 to 255 sec.
Operating Temperature	0°C to +50°C (+32°F to +122°F) (with W.T. DRAM/HDD in airflow condition) 0°C to +45°C (+32°F to +113°F) (with W.T. DRAM)
Relative Humidity	20% to 90% @ +40°C; non-condensing
Vibration	2G, 5 - 500Hz, random for mSATA
Dimensions (W x D x H)	250.7 x 45.8 x 204.7 mm (9.87" x 1.80" x 8.06")
Weight (net/gross)	1.3 kg (2.87 lb)/ 2.25 kg (4.96 lb)
Certifications	CE, FCC, UL60950-1
EOS	WES 7, Windows® 7, WE8S (64-bit), Windows® 8.1 (64-bit), Windows® 10
Mounting	Panel mount Wall mount VESA arm Desktop stand
