產品特色
- Intel® Atom® x5-E3940 processor
- 1 DDR3L SO-DIMM for up to 8GB of memory
- 2 GbE LAN
- 1 PCI Express Mini Card slot with mSATA supported
- Supports M.2 Key B
產品簡介

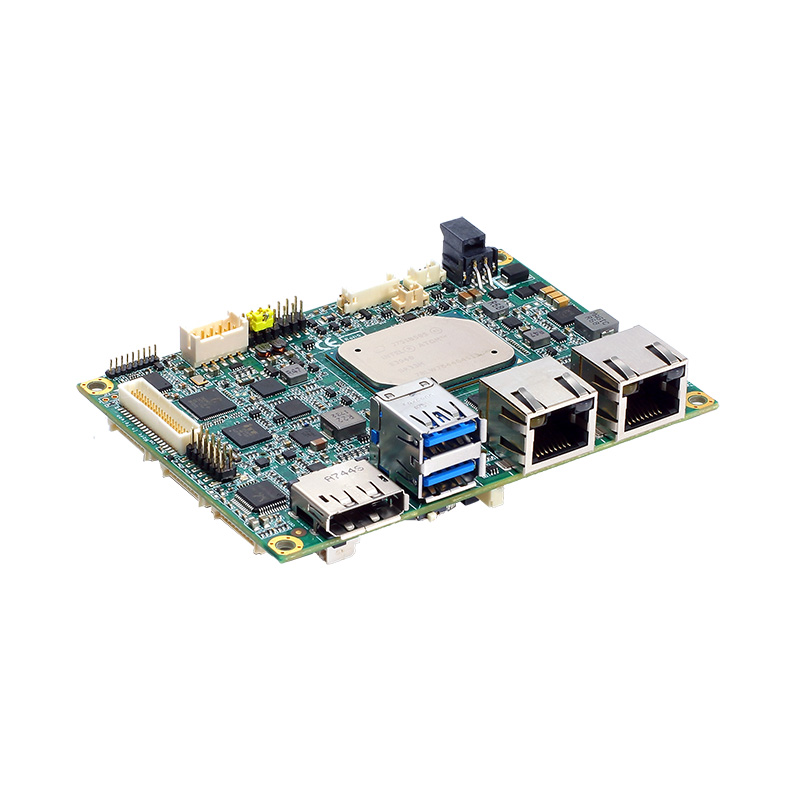

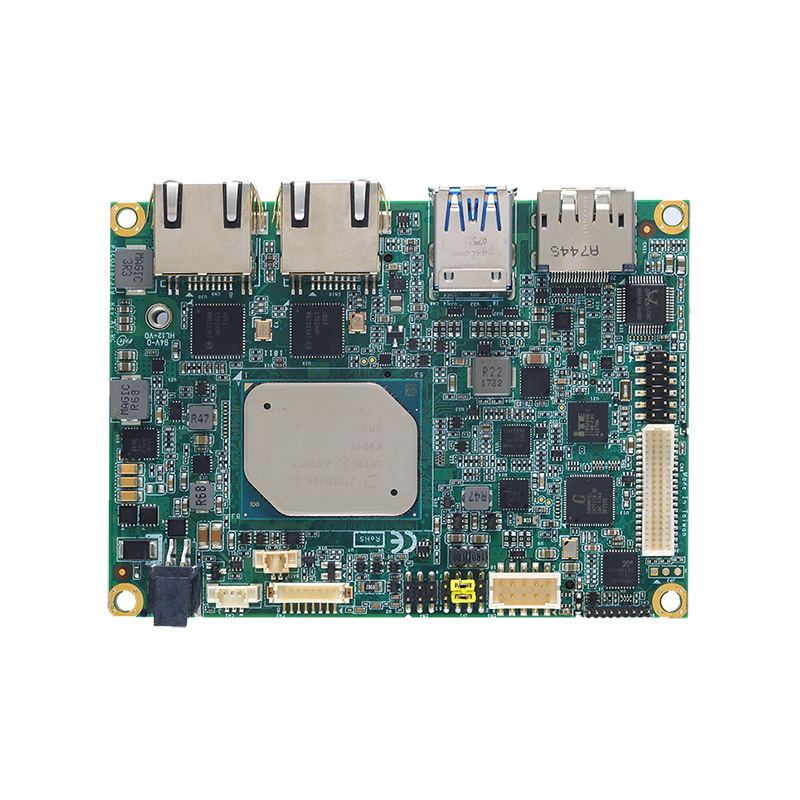

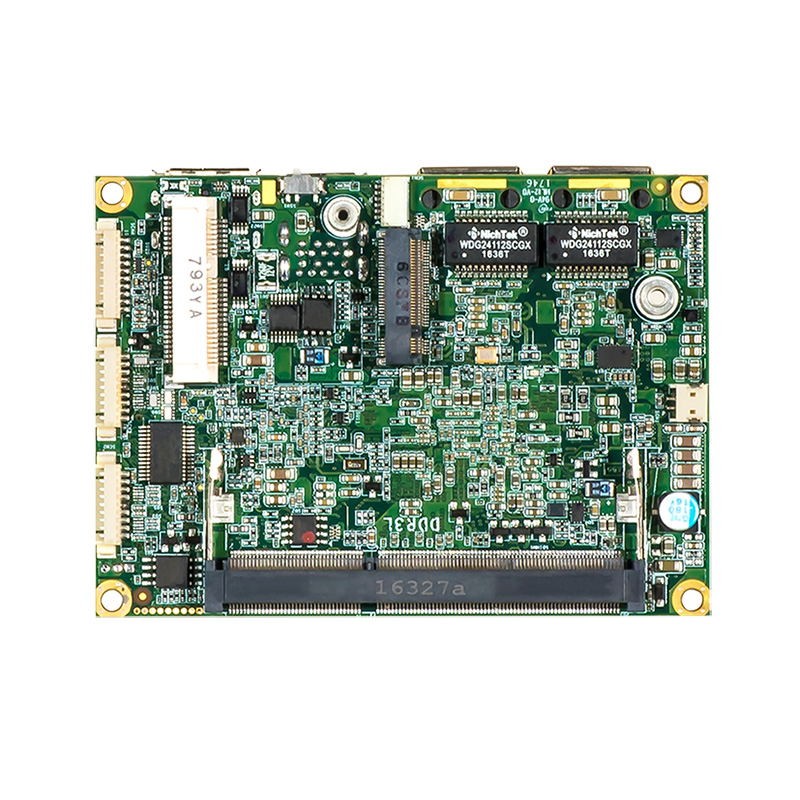

The PICO319 is powered by the onboard Intel® Atom® x5-E3940 quad-core processor. The noise-free pico-ITX motherboard offers combinations of ruggedness, high computing capabilities and enhanced graphics capability in an extremely compact size of only 100 x 72 mm. Moreover, the board features 12V DC power supply input with AT Auto Power On function. A dual-display capability is available through DisplayPort++ and 18/24-bit single/dual channel LVDS ports. For extensive storage needs, this compact embedded motherboard has one M.2 Key B slot (22 x 42 mm or 30 x 42 mm) for SATA or PCIe x2 SSD card and one half-size PCI Express Mini Card slot in support of mSATA. The Intel® Atom®-based pico-ITX board comes with rich I/O connectors, including two USB 2.0 ports, two USB 3.0 (USB 3.1 Gen1) ports, one RS-232/422/485 port, one RS-232 port, one HD Codec audio, and 4-channel digital I/O. It also supports SMBus that is compatible with I2C for smart battery support. The PICO319 offers watchdog timer and hardware monitoring function for reliable operation.
