產品特色
- LGA1151 9th/8th gen Intel® Core™ i7/i5/i3 processor
- Intel® H310 chipset
- 2 DDR4 SO-DIMM for up to 64GB of memory
- 4 USB 3.2 Gen 1 and 2 USB 2.0
- 6 COM ports
- 2 SATA-600 and 1 mSATA
- PCIe x16 and M.2 Key E
產品簡介

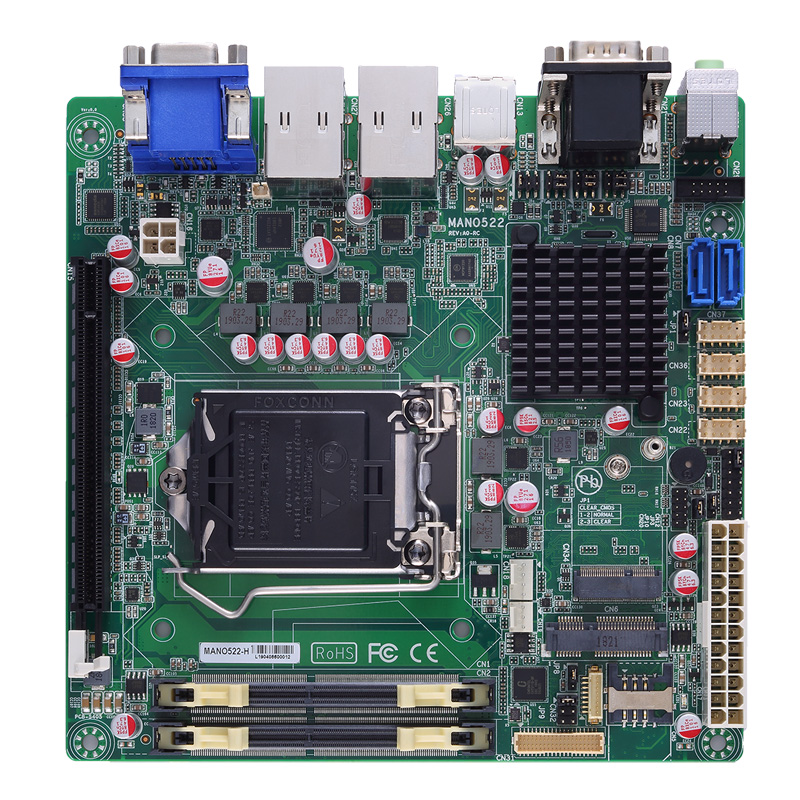

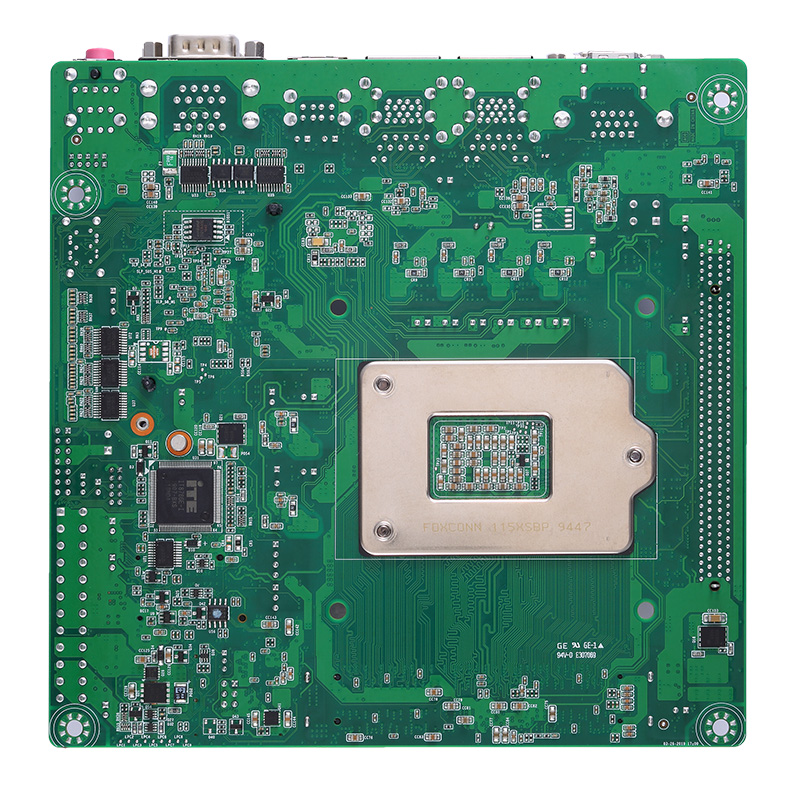

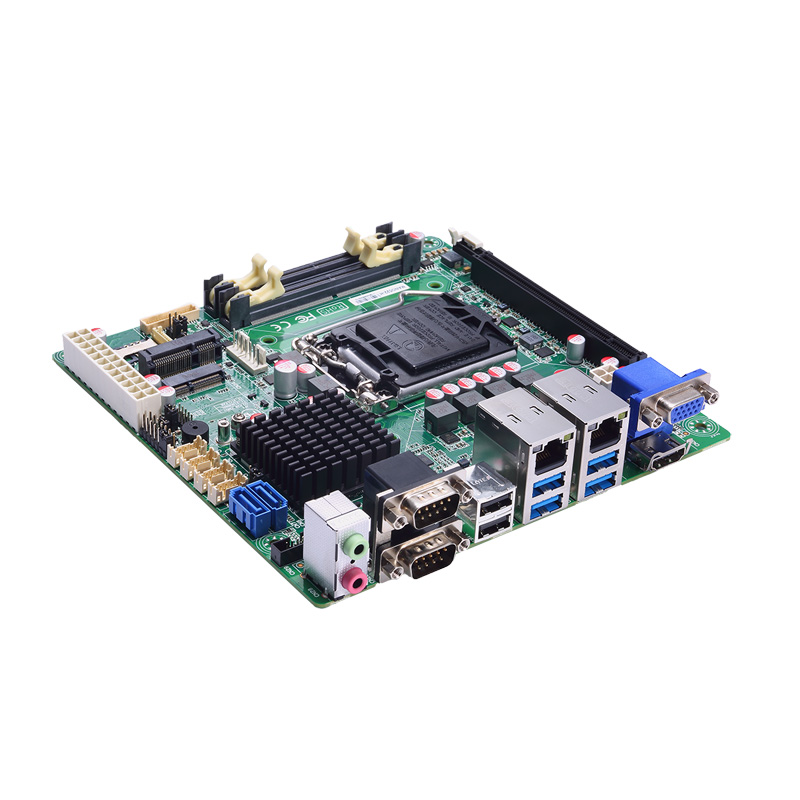

The MANO522 is powered by the LGA1151 socket 9th/8th generation Intel® Core™ i7/i5/i3 processor (code name: Coffee Lake) with the Intel® H310 chipset. With a small form factor of 17 x 17 cm, this industrial motherboard is an excellent choice for space-constrained environments. Its high computing power, 4K-ready and high expandability make it well-suited for intelligent transportation, factory automation, self-service kiosks, infotainment, and digital signage. This industrial motherboard is integrated with Intel® integrated Gfx graphics engine with UHD 4K resolution and provides rapid video acceleration and dual-view capability through the VGA, HDMI and LVDS. To ensure reliable operation, the MANO522 has a wide operating temperature range of 0°C to 60°C. It also supports watchdog timer and hardware monitoring, and offers Trusted Platform Module 2.0 (TPM 2.0) for optimum security.
