CPU |
- LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Celeron®, Pentium®, and Xeon® processor (CPU TDP max. up to 65W)
|
Chipset |
|
System Memory |
- 2 x 260-pin DDR4-2666 ECC/non-ECC SO-DIMM, up to 64GB
|
BIOS |
|
COM |
- 1 x Terminal block RS-232/422/485 (4-wire)
|
USB |
|
PoE |
- Up to 8 x RJ-45 & 8 x M12/ 16 x RJ-45
- PoE output max. 90W supports PoE & PoE+
- PoE (802.3af 15.4W/port)
- PoE+ (802.3at 30W/port)
|
Ethernet |
- Flexible LAN selection:
- 1 x Non-PoE RJ-45 GbE LAN + 8 x PoE RJ-45 GbE LAN with 2 SATA (Intel® I210-AT)
- 1 x Non-PoE RJ-45 GbE LAN + 8 x PoE M12 A-code GbE LAN with 4 SATA (Intel® I210-AT)
- 1 x Non-PoE RJ-45 GbE LAN + 16 x PoE RJ-45 GbE LAN with 4 SATA (Intel® I210-AT)
|
Display |
- 1 x VGA (supports up to 1920 x 1200 @60Hz)
- 2 x HDMI (supports up to 4K/2K @30Hz)
|
CANbus |
|
Digital I/O |
- 1 x Terminal block isolated 6-in/2-out DIO (isolation voltage: 2 kV)
|
Audio |
|
Storage |
- 2 x 2.5” 9.5 mm swappable SATA drive with 2 SATA, Intel® RAID 0/1 supported
- 4 x 2.5” 9.5 mm swappable SATA drive with 2 SATA, Intel® RAID 0/1/5/10 supported
- 2 x mSATA (occupied 2 x PCI Express Mini Card slot)
|
Expansion |
- 1 x Full-size Rev.1.2 PCI Express Mini Card slot (1 x mSATA/USB/PCIe)
- 1 x Half-size Rev.1.2 PCI Express Mini Card slot (1 x mSATA/USB)
- 1 x M.2 Key B 3050/3042
- 1 x M.2 Key A & E 2230
|
Others |
- TPM 2.0
- 1 x Reset button
- 4 x Antenna opening
- 2 x External accessible SIM card socket
- 2 x Flexible I/O window
|
Power Supply |
- General use: 1 x Terminal block, 9 to 36 VDC (typical 24V)
- Vehicle: 1 x Terminal block, 9 to 36 VDC with Smart Ignition(typical 24V)
|
Watchdog Timer |
- 255 levels, 1 to 255 sec.
|
Construction |
- Aluminum extrusion and heavy-duty steel, supports up to IP40
|
Operating Temperature |
- -40°C to +70°C (-40°F to +158°F) with W.T. peripheral
|
Relative Humidity |
- 10% to 95%, non-condensing
|
Vibration |
- 3 Grms w/ SSD (5 to 500Hz, X/Y/Z direction; random, operating)
- 0.8 Grms w/ HDD (5 to 500Hz, X/Y/Z direction; random, operating)
- 2.5 Grms w/ HDD & Anti-Vibration Kit (5 to 500Hz, X/Y/Z direction; random, operating)
- MIL-STD-810G, Method 514.6C-VI Category 4 compliant
|
Shock |
|
Dimensions (W x D x H) |

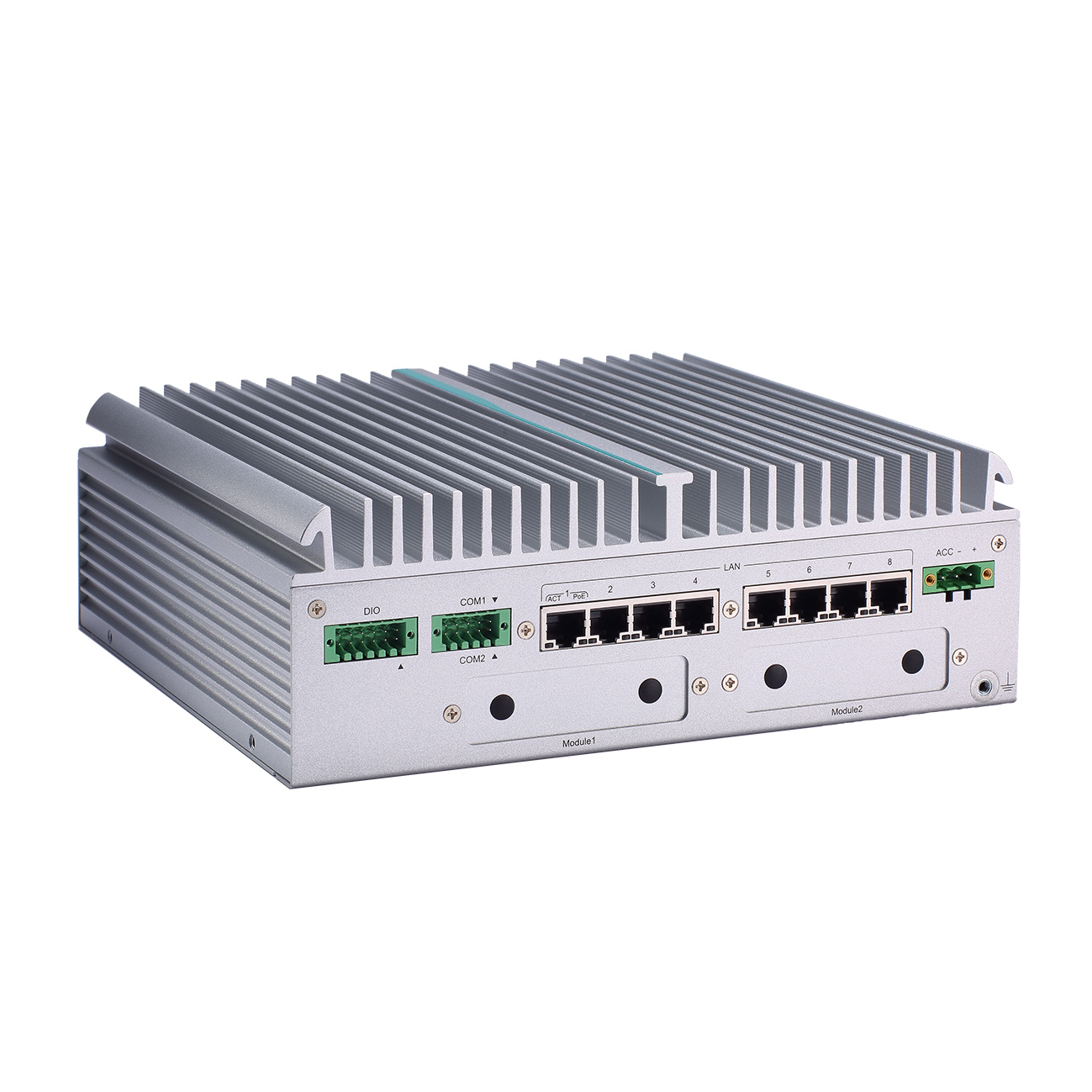

- 8RJ 2SATA SKU: 240 x 210.5 x 82.2 mm (9.45" x 8.29" x 3.24”)

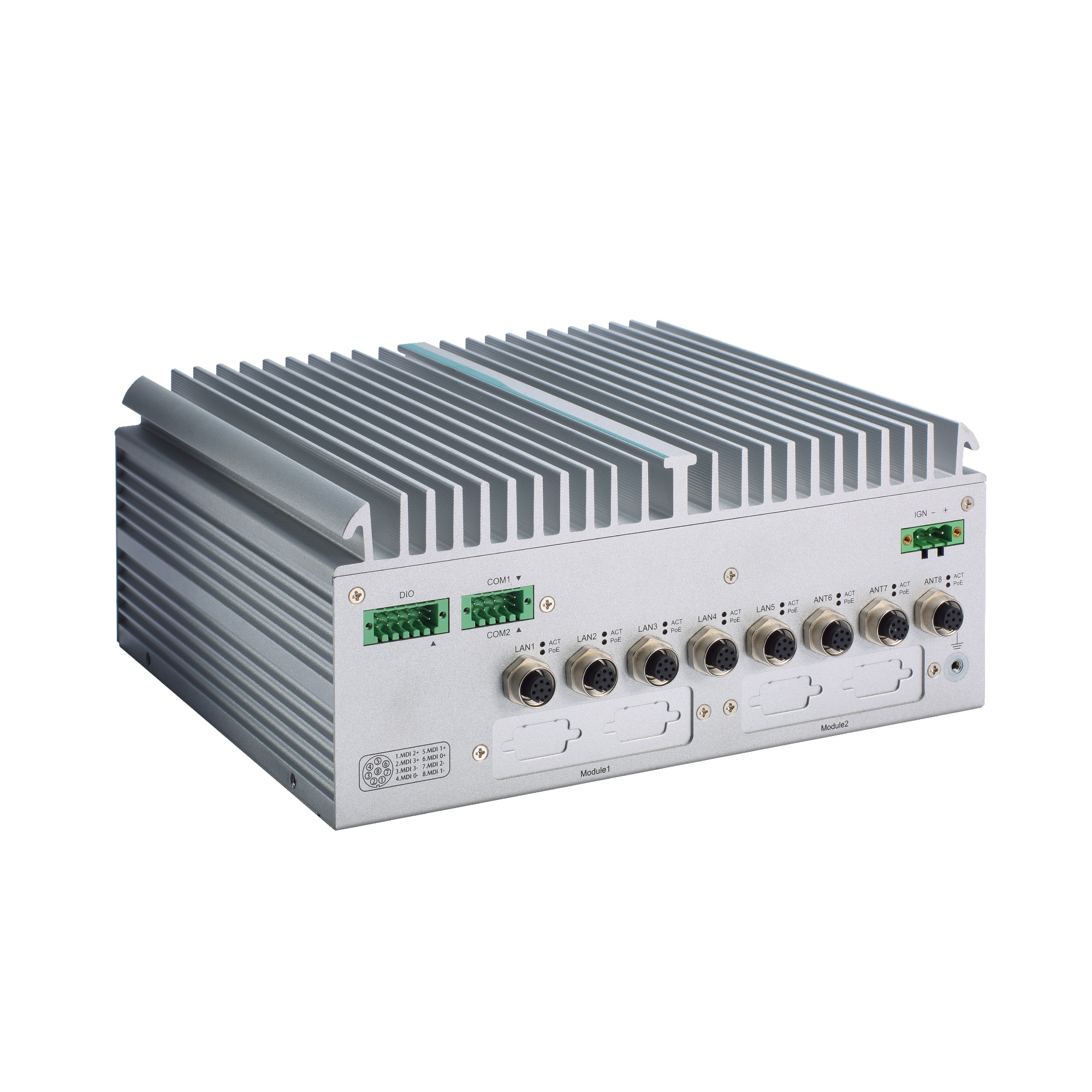

- 8M12 4SATA SKU: 240 x 210.5 x 104.2 mm (9.45" x 8.29" x 4.1")

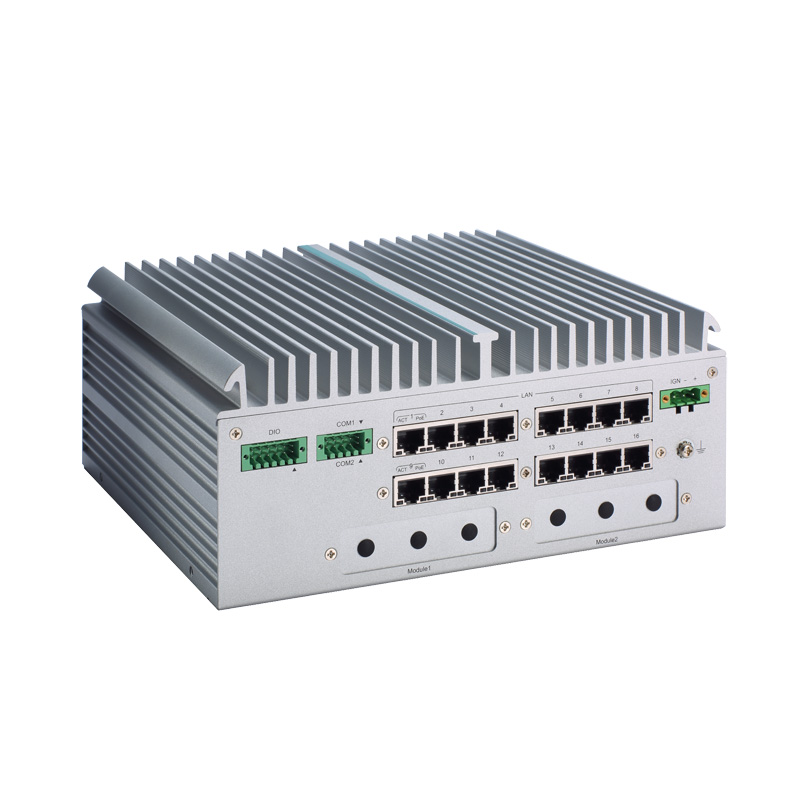

- 16RJ 4SATA SKU: 240 x 210.5 x 104.2 mm (9.45" x 8.29" x 4.1")
|
Weight (net/gross) |
- 8RJ 2SATA SKU: 4.16 kg (9.17 lb)/4.82 kg (10.62 lb)
- 8M12 4SATA SKU: 4.81 kg (10.604lb)/6.06kg (13.36lb)
- 16RJ 4SATA SKU: 4.796kg(10.57lb)/6.05kg(13.33lb)
|
Certifications |
- CE (Class A), FCC (Class A), E-Mark certified
|
EOS Support |
- Windows® 10/11 64-bit, Linux
|
Software Support |
|
Mounting |
|
