| CPU |
- LGA1200 socket 11th/10th Gen Intel® Xeon®, Core™ i9/i7/i5/i3 or Celeron® processor (35W/65W)
|
| Chipset |
|
| System Memory |
- 2 x 260 pin DDR4-2933 ECC/non-ECC SO-DIMM, up to 64GB
- ECC memory is available with Intel®Xeon® processor
|
| BIOS |
|
| COM |
- 2 x RS-232
- 2 x RS-232/422/485
|
| USB |
- 5 x USB 3.2 Gen2
- 1 x USB 3.2 Gen1
|
| Ethernet/PoE |
- 4 x GbE LAN (PoE by option) (3 x Intel® I210-IT, 1 x Intel® I219-LM)
|
| Display |
- 2 x HDMI 1.4b (lockable)
- 1 x DisplayPort 1.2 ++
|
| Digital I/O |
|
| Audio |
|
| Storage |

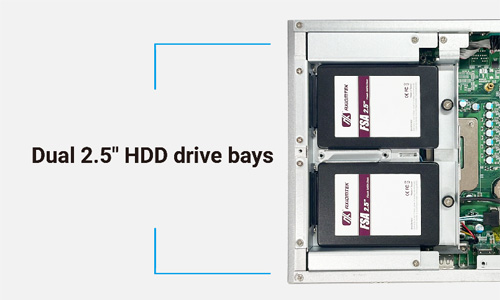

- 2 x 2.5” SATA HDD/SSD (up to 15 mm height & RAID 0 & 1)
- 2 x mSATA (enabled in BIOS setting & RAID 0 &1)
|
| Expansion |
- 2 x Full-size PCI Express Mini Card slot (USB + PCIe + SATA signal)

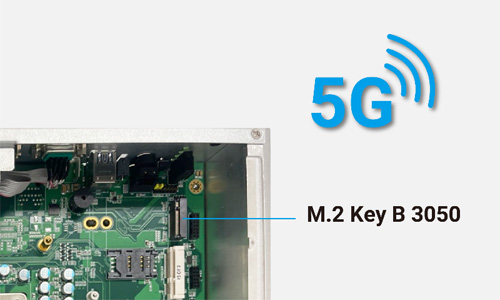

- 1 x M.2 Key B 3050 slot (for 5G)
- 1 x Internal SIM slot for PCIe Mini Card slot
|
| Others |
- TPM 2.0
- 1 x Flexible I/O window
- 5 x Antenna opening
- 1 x Power button
- 1 x AT/ATX quick switch
- 1 x Remote switch connector
- 1 x Reset switch connector
- 1 x Grounding screw
|
| Power |
- 9 to 48V DC input for standard
- Optional PoE function only supports 24V DC input
|
| Watchdog Timer |
- 255 levels, 1 to 255 sec.
|
| Construction |
- Aluminum extrusion and heavy-duty steel, IP40
|
| Operating Temperature |
- Ethernet version
- -40°C to +70°C (-40°F to +158°F) with 0.7 m/s air flow (CPU TDP 35W) (with W.T. DRAM & SSD)
- -40°C to +60°C (-40°F to +140°F) with 0.7 m/s air flow (CPU TDP 65W) (with W.T. DRAM & SSD)
- PoE version (optional)
- -40°C to +60°C (-40°F to +140°F) with 0.7 m/s air flow (CPU TDP 35W) (with W.T. DRAM & SSD)
- -40°C to +50°C (-40°F to +122°F) with 0.7 m/s air flow (CPU TDP 65W) (with W.T. DRAM & SSD)
|
| Relative Humidity |
- 10% - 90%, non-condensing
|
| Vibration |
- IEC 60068-2-64 (w/ SSD: 3Grms STD, random, 5 - 500 Hz, 1 hr/axis)
|
| Shock |
- IEC 60068-2-27 (w/ SSD: 50G, half-sine, 11 ms duration)
|
Dimensions
(W x D x H) |
- 280 x 210 x 80.5 mm (11.02" x 8.26" x 3.16")
|
| Weight (net/gross) |
- 4.9 kg (10.8 lb)/7 kg (15.43 lb)
|
| Certifications |
|
| EOS Support |
|
| Software Support |
|
| Mounting |
- Wall mount kit
- DIN-rail kit
|
