| Form Factor |
|
| CPU |
- Intel Atom® x6212RE/x6414RE processor (Elkhart Lake)
|
| Chipset |
|
| System Memory |
- DDR4-3200 SO-DIMM, up to 32GB
|
| BIOS |
|
| Ethernet |
- 2 x 10/100/1000 Mbps (Marvell 88E1512) with LAN Bypass
- 2 x 2.5G (Intel® I225-IT) with LAN Bypass and TSN function
- 2 x 1G SFP (Intel® I210-IS)
|
| Storage |
- 1 x 2.5" SATA 3.0 SSD
- 1 x eMMC onboard (optional)
|
| Expansion |
- 1 x M.2 Key B 3042/3052 slot (PCIe + USB interface)
- 1 x Full-size PCIe Mini Card slot (USB + SATA interface)
|

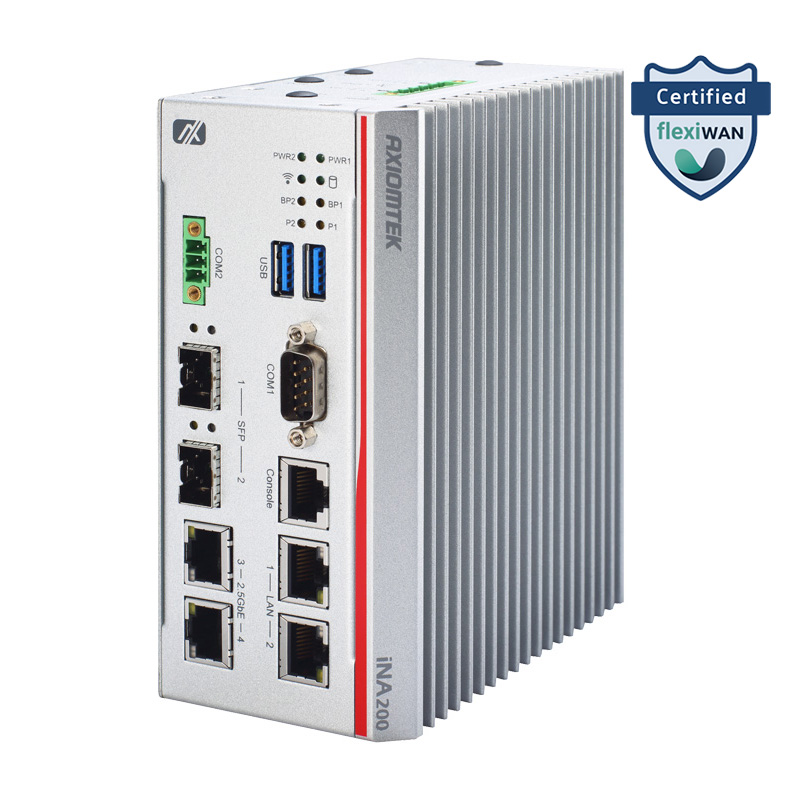

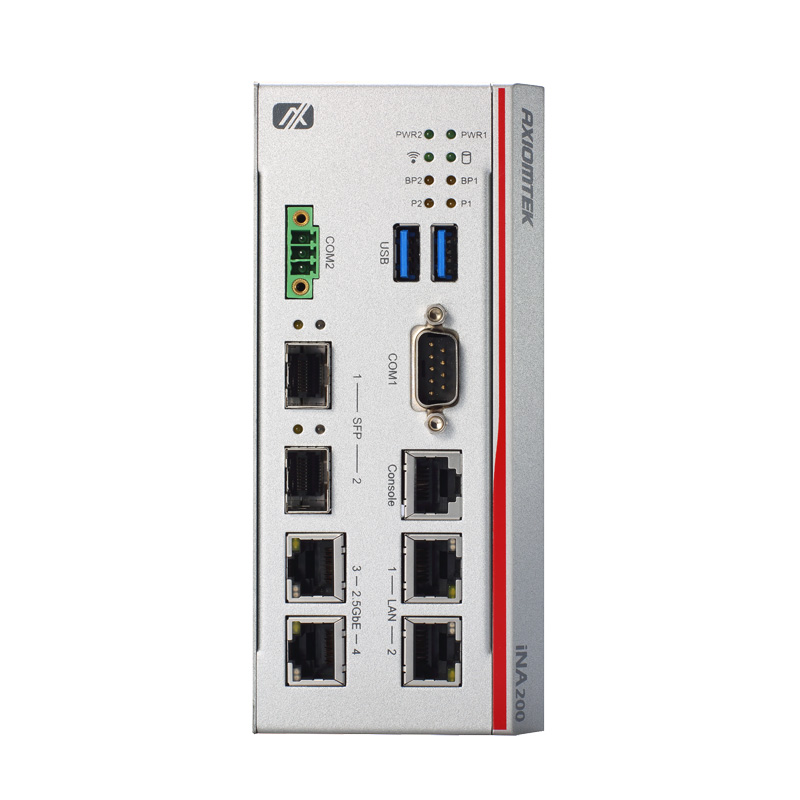

| I/O Interface |

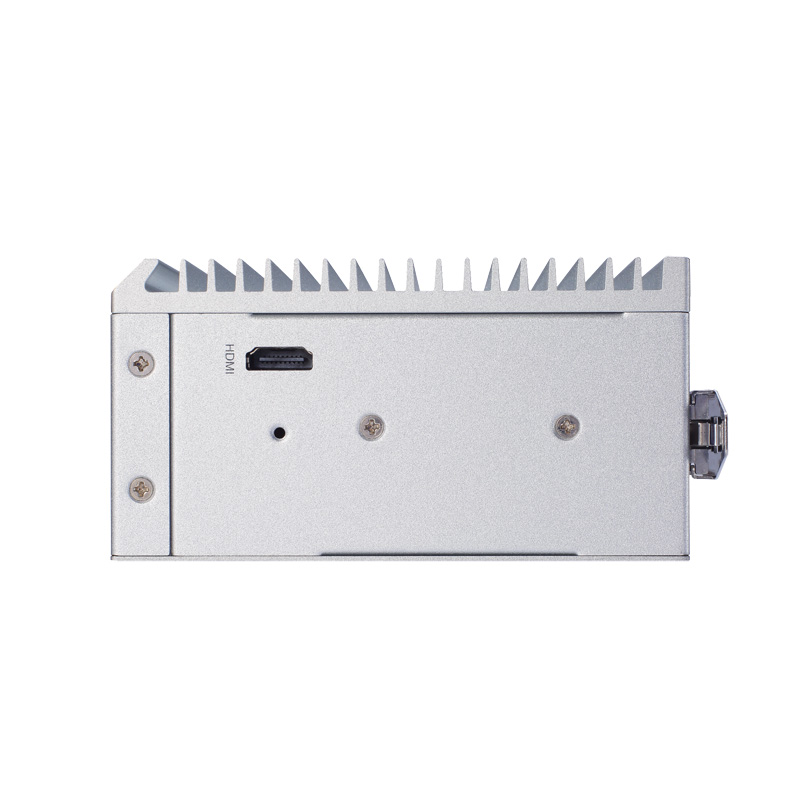

- 1 x HDMI
- 2 x USB 3.1
- 1 x COM port (RS-232/422/485) with DB9 type
- 1 x COM port (RS-485) with 3-pin terminal block
- 1 x Tact switch
- 4 x Antenna hole
- 1 x Power input connector
- 4 x Copper
- 2 x Fiber
- 1 x Console port (RJ-45)
|
| Power Supply |
- 9 to 36V DC (typical 12/24V) with terminal block for dual power input
- OVP, UVP, OCP, RPP power protection design
|
| Others |
|
| Watchdog Timer |
- 255 stepping for system reset
|
Dimensions
(W x D x H) |
- 66 x 127 x 150mm (2.6" x 5" x 5.9")
|
| Operating Temperature |
- -40°C to +70°C (-40°F to +158°F)
|
| Weight (net/gross) |
- 1.5 kg (3.3 lb)/1.8 kg (3.97 lb)
|
| OS |
|
| Certifications |
- CE (Class A), FCC (Class A)
|
