| CPU |
- LGA1700 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 or Celeron® processor (CPU TDP max. up to 65W)
|
| Chipset |
|
| System Memory |
- 2 x 262-pin DDR5-4800 SO-DIMM, up to 64GB
|
| BIOS |
|
| COM |
- 1 x DB9 serial console or RS-232 with 5V/1A (on 9th pin)
|
| USB |
|
| PoE |

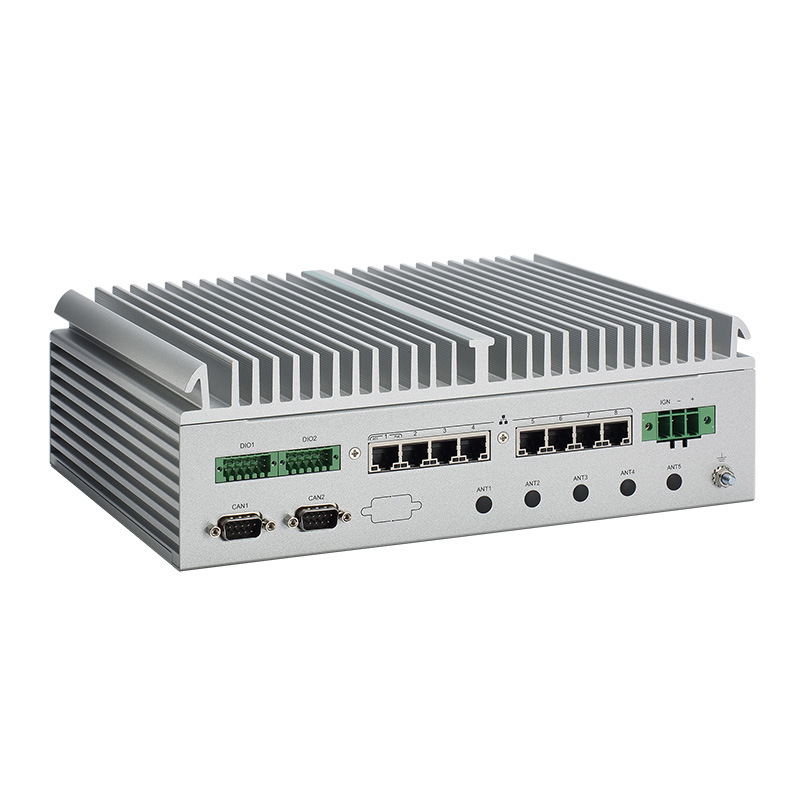

- 8 x PoE RJ-45 2.5GbE LAN with 2 SATA (Intel® I226-IT)

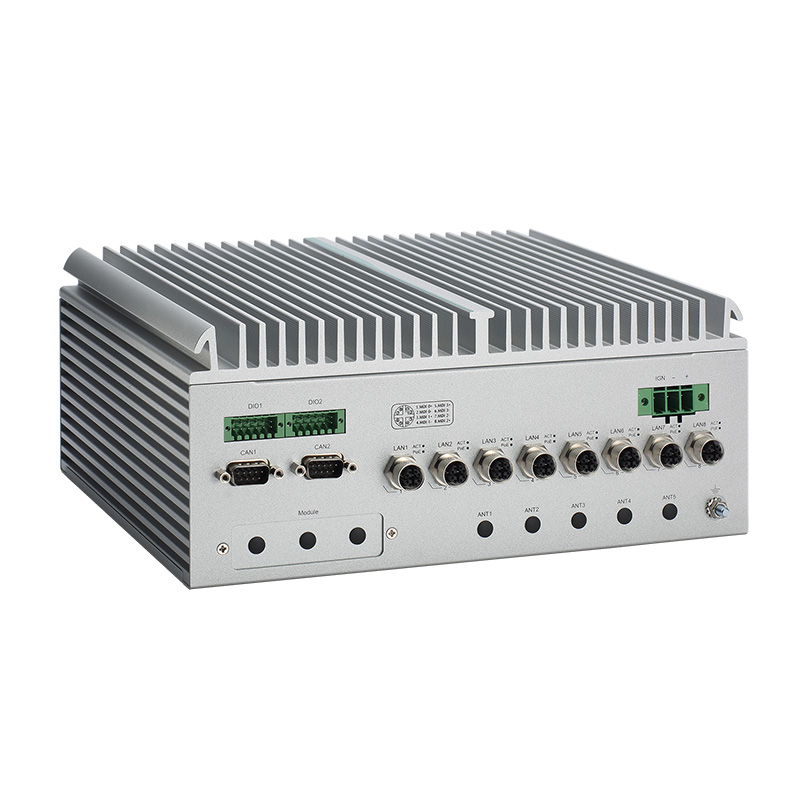

- 8 x PoE M12 X-code 2.5GbE LAN with 4 SATA (Intel® I226-IT)

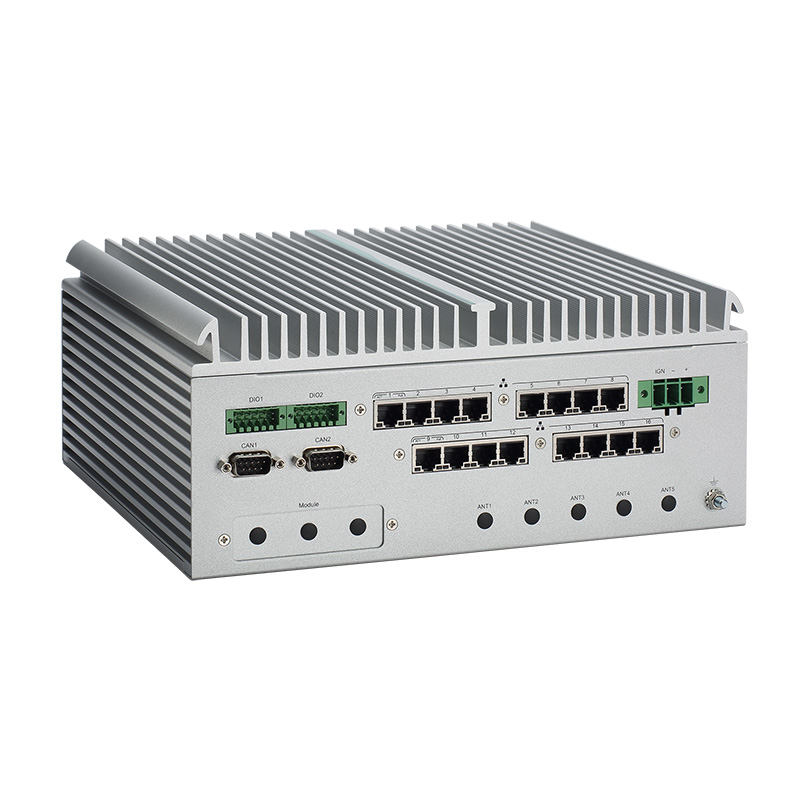

- 16 x PoE RJ-45 2.5GbE LAN with 4 SATA (Intel® I226-IT)
|
| Ethernet |
|
| Display |
- 1 x VGA (supports up to 1920 x 1200 @ 60Hz)
- 2 x HDMI (supports up to 4K/2K @ 50Hz)
|
| CANbus |
- 2 x DB9 with 2 x CANBus 2.0 A/B, SocketCAN/J1939 supported
|
| Digital I/O |
- 2 x terminal block isolated 6-in/2-out DIO (isolation voltage: 2 kV)
|
| Audio |
|
| Storage |

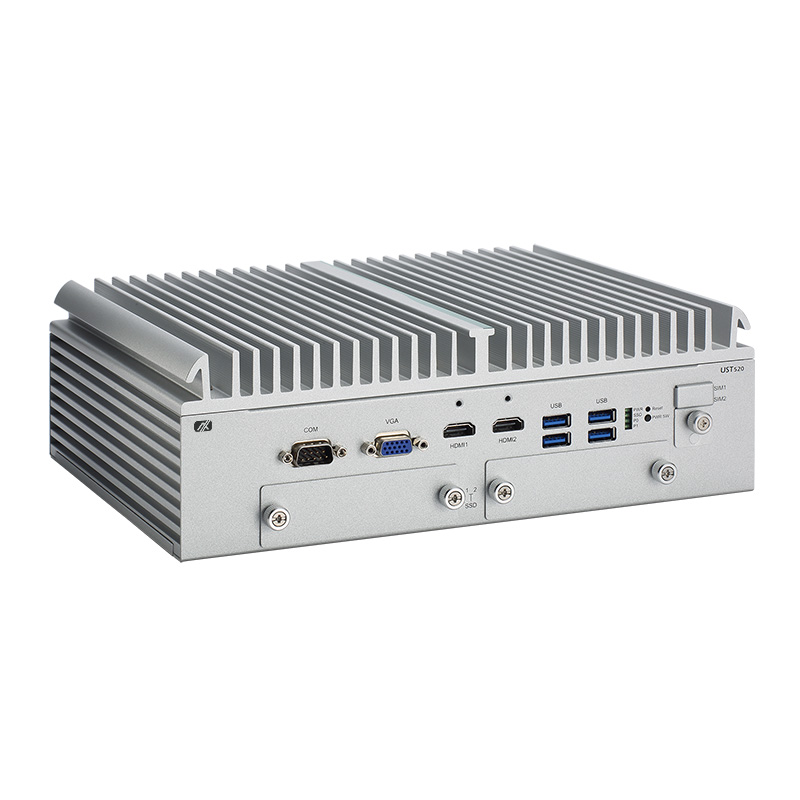

- 2 x 2.5" 15 mm swappable SATA drive with 2 SATA, Intel® RAID 0/1 supported

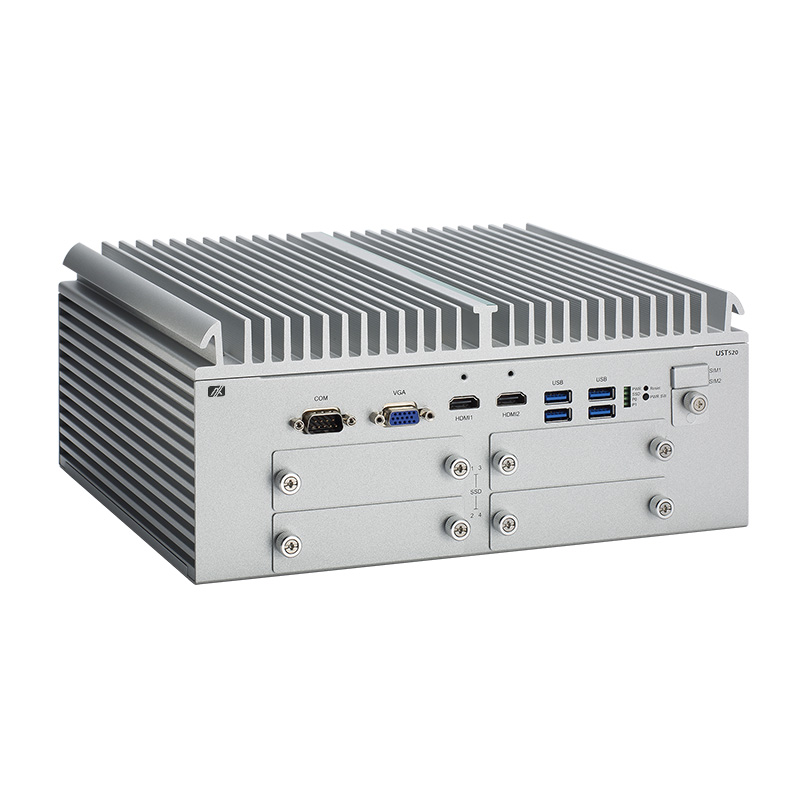

- 4 x 2.5" 15 mm swappable SATA drive with 4 SATA, Intel® RAID 0/1/5/10 supported
|
| Expansion |
- 1 x Full-size mPCIe (PCIe/USB) for LTE/GPS/Wi-Fi/IO expansion
- 1 x Half-size mPCIe (USB) for GPS
- 1 x M.2 2280/2242 Key M (PCIe x4/SATA) for NVMe
- 1 x M.2 3052 Key B (USB 3.0/2.0) for 5G/LTE
- 1 x M.2 2230 Key E (PCIe/USB) for Wi-Fi/BT
|
| Others |
- 1 x Reset button
- 5 x Antenna opening
- 2 x External accessible SIM card socket
- 1 x Flexible I/O window
- TPM 2.0
|
| Power Supply |
- 1 x Terminal block, 12/24/48 VDC with smart ignition
|
| Watchdog Timer |
- 255 levels, 1 to 255 sec.
|
| Construction |
- Aluminum extrusion and heavy-duty steel, supports up to IP40
|
| Operating Temperature |
- -40°C to +70°C (-40°F to +158°F)
|
| Relative Humidity |
- 10% to 95% relative humidity, non-condensing
|
| Vibration |
- 3 Grms w/ SSD (5 to 500Hz, X/Y/Z direction; random, operating)
- 1 Grms w/ HDD (5 to 500Hz, X/Y/Z direction; random, operating)
- 2 Grms w/ HDD & Anti-Vibration Kit (5 to 500Hz, X/Y/Z direction; random, operating)
|
| Shock |
|
Dimensions
(W x D x H) |
- 8RJ 2SATA SKU: 280 x 210.5 x 89 mm (11.02" x 8.29" x 3.5")
- 8M12 4SATA SKU: 280 x 210.5 x 117 mm (11.02" x 8.29" x 4.6")
- 16RJ 4SATA SKU: 280 x 210.5 x 117 mm (11.02" x 8.29" x 4.6")
|
| Weight (net/gross) |
- 8RJ 2SATA SKU: 5.8 kg (12.8lb)/8.2kg (18.1b)
- 8M12 4SATA SKU: 7.3 kg (16.1lb)/9.5kg (20.9b)
- 16RJ 4SATA SKU: 7.3 kg (16.1lb)/9.5kg (20.9b)
|
| Certifications |
- CE (Class A), FCC (Class A), E-Mark and R118 certified
|
| EOS Support |
- Windows® 11 64-bit, Linux
|
| Software Support |
- DigiHub Embedded (Axiomtek EAPI):
- Smart ignition
- PoE management
- Digital I/O control
- Hardware monitoring
|
| Mounting |
|
