| Form Factor |
|
| CPU |
- Intel Atom® x7433RE processor (Amston Lake)
|
| Chipset |
|
| System Memory |
- DDR5-4800 SO-DIMM, up to 16GB
|
| BIOS |
|
| Ethernet |
- 6 x 2.5G (Intel® I226-IT) with 2-pairs LAN bypass
- 2 x 1G SFP (Intel® I210-IS)
|
| Storage |
- 1 x 2.5" SATA 3.0 SSD
- 1 x eMMC onboard (optional)
|
| Expansion |
- 1 x full-size PCI Express Mini Card slot with SIM slot (USB interface)
|

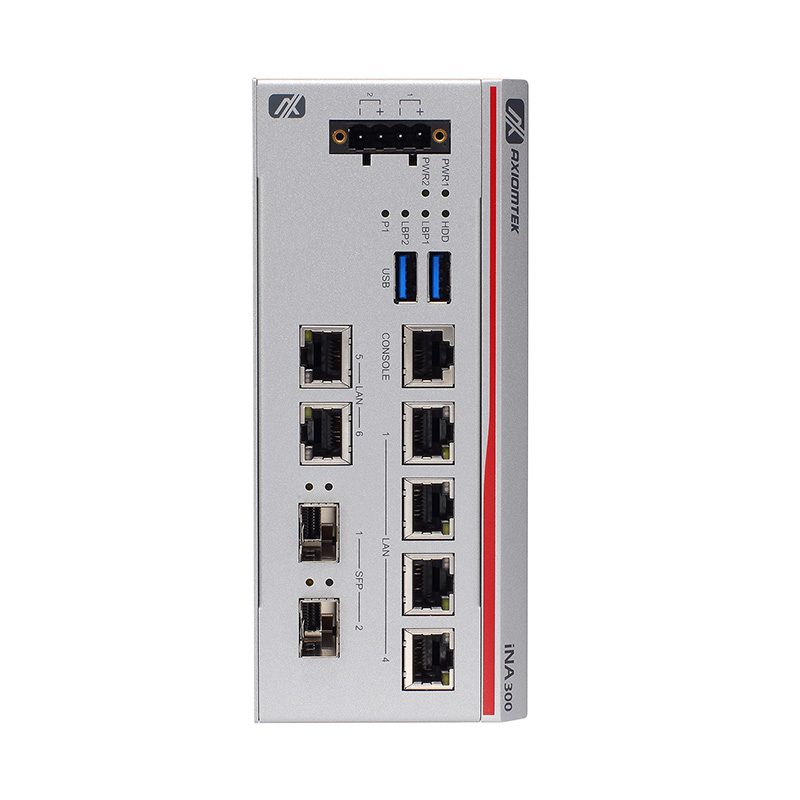

| I/O Interface |
- 1 x HDMI
- 2 x USB 3.2
- 1 x reset button (tactile switch)

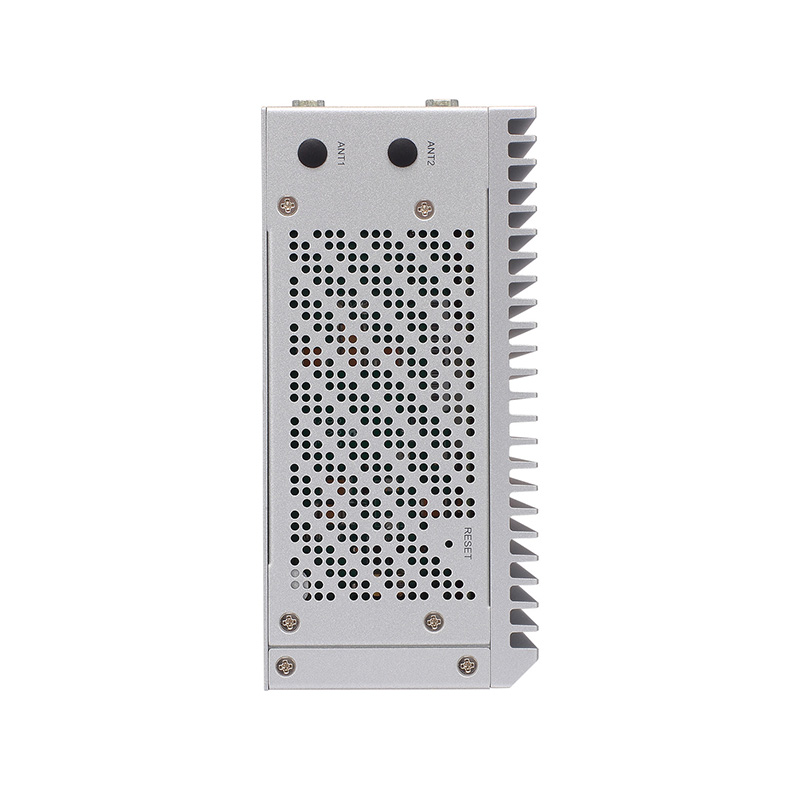

- 2 x antenna holes
- 1 x power input connector
- 6 x copper
- 2 x fiber
- 1 x console port (RJ-45)
|
| Power Supply |
- 12 to 48 VDC (typical 12/24V) with terminal block for dual power input
- OVP, UVP, OCP, and RPP power protection design
|
| Others |
|
| Watchdog Timer |
- 255 stepping for system reset
|
Dimensions
(W x D x H) |
- 71 x 150 x 165 mm (2.8" x 5.9" x 6.5")
|
| Operating Temperature |
- -40°C to +60°C (-40°F to +140°F)
|
| Weight (net/gross) |
- 1.58 kg (3.48 lbs)/2.15 kg (4.74 lbs)
|
| OS |
|
| Certifications |
- CE (Class A), FCC (Class A), UKCA, IEC 61850-3, and IEEE 1613
|
