產品特色
- LGA1151 9th/8th gen Intel® Core™ i7/i5/i3 processor
- Intel® H310 chipset
- 2 DDR4 SO-DIMM for up to 32GB of memory
- 4 USB 3.0 and 4 USB 2.0
- 4 COM ports
- 3 SATA-600 and 1 mSATA
- PCIe x16 and M.2 Key E
產品簡介

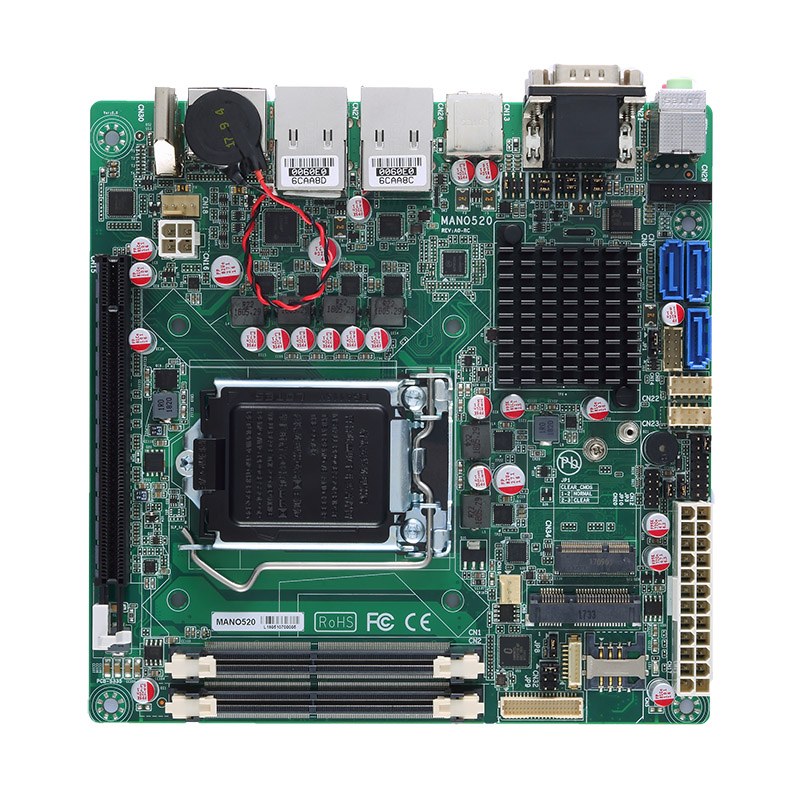

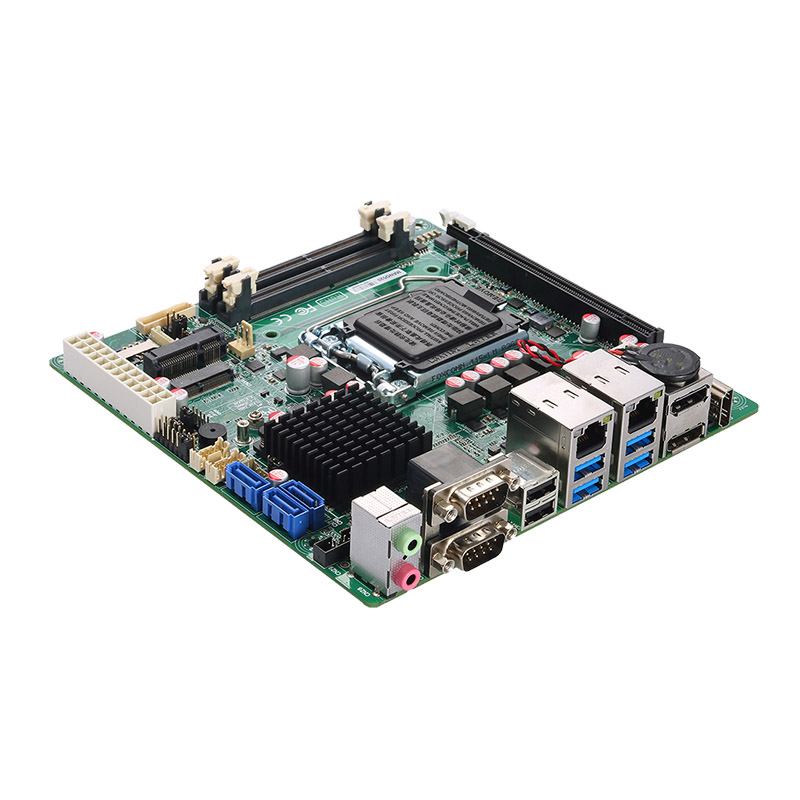

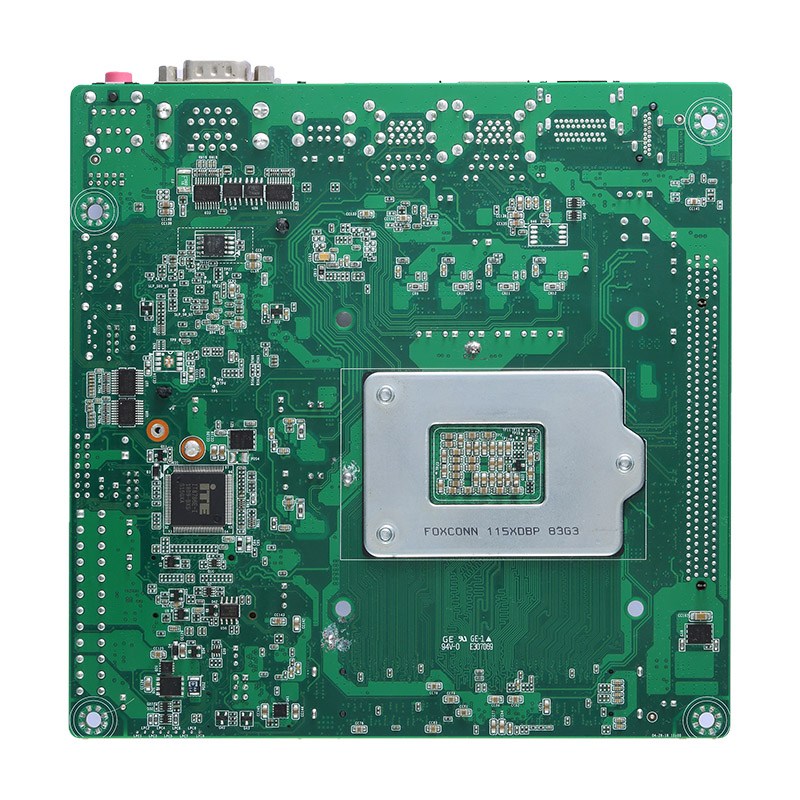

The MANO520 is powered by the LGA1151 socket 9th/8th generation Intel® Core™ i7/i5/i3 (code name: Coffee Lake), Intel® Pentium® Gold or Intel® Celeron® processor with the Intel® Q310 chipset. The Intel® Coffee Lake-based MANO520 is specifically designed for performance-demanding applications with its excellent reliability as well as communication and real-time computing capabilities. The MANO520 supports two 260-pin DDR4-2666/2400 SO-DIMM sockets for up to 32GB of memory. Also, the mini-ITX motherboard features three SATA-600 connectors and one mSATA for additional storage. It is equipped with one full-size PCI Express Mini Card, one PCIe x16 and one M.2 Key E slots for wireless devices such as Wi-Fi, Bluetooth, and 3G/LTE. Moreover, the mini-ITX form factor single board computer features an ATX connector with AT mode auto power function.
