產品特色
- LGA1151 socket 9th/8th gen Intel® CoreTM i7/i5/i3 processor
- Intel® H310/Q370 chipset
- 1 DDR4 SO-DIMM for up to 16GB of memory
- 3 GbE LAN
- 1 PCI Express Mini Card slot
- Intel® AMT 12 supported (optional)
產品簡介

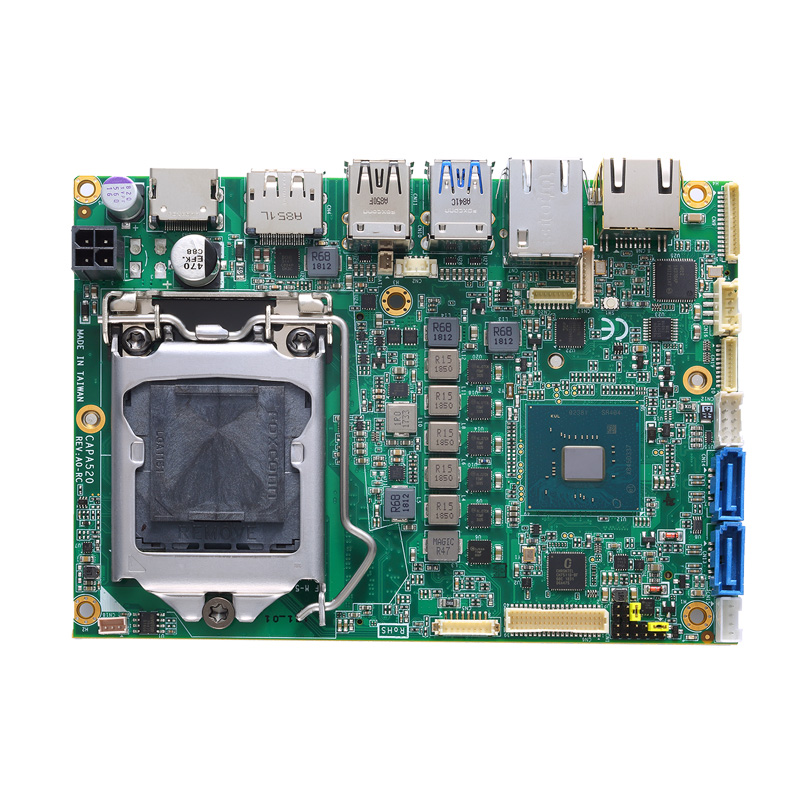

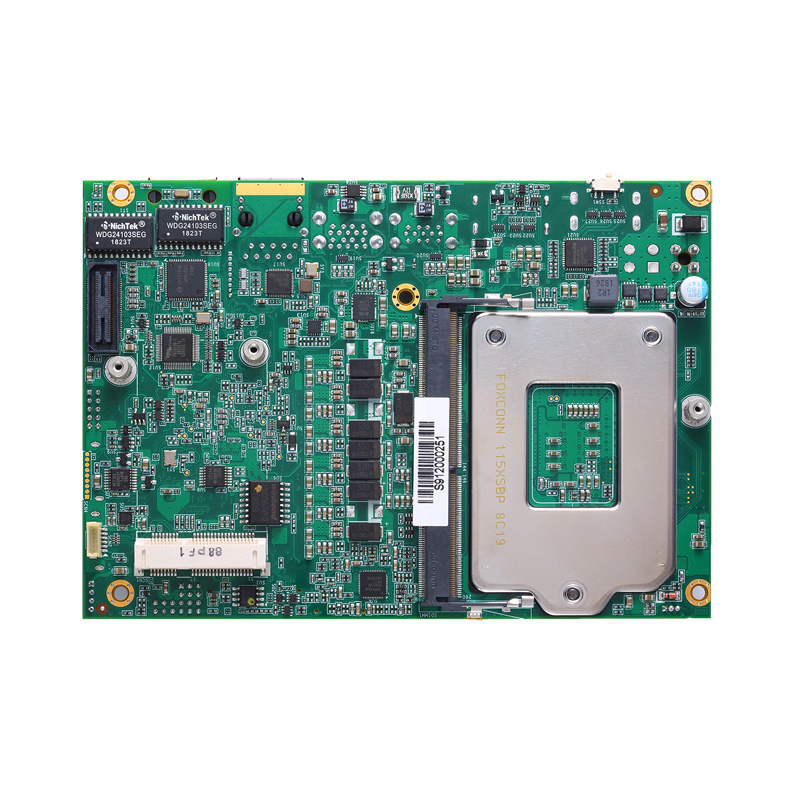

The CAPA520 is powered by the LGA1151 socket 9th/8th generation Intel® Core™ i7/i5/i3 and Intel® Celeron® processors (code name: Coffee Lake) with the Intel® H310 chipset (Q370 optional). The industrial-grade CAPA520 with a size of 146 mm x 104 mm features triple-display capability through HDMI, LVDS and DisplayPort interfaces, enabling multi-display applications in a limited space. With rich I/O connectivity and great expansions, the highly integrated CAPA520 was designed to shorten the time to market and reduce development costs. It delivers powerful 3D and 4K graphics through the integrated Intel® UHD Graphics 630. Moreover, it can operate in a wide temperature range from -20°C to 60°C. To ensure reliable and stable operation, this 3.5-inch embedded SBC supports the Intel® AMT 12 for easy remote management and monitoring and has hardware monitoring function to monitor CPU/system temperature, voltage and fan speed. This powerful embedded SBC is optimized for various industrial IoT-related applications in the embedded market, such as industrial control, machine vision, self-service terminal, digital signage, and medical imaging.
