產品特色
- IP67-rated design, specifically for outdoor environments
- NVIDIA® Jetson Xavier™ NX with Volta™ GPU architecture with 384 NVIDIA CUDA® cores
- High AI computing performance for GPU accelerated processing
- -30°C to +50°C operating temperature range
- 100 to 240 VAC wide range power input with 10kV surge protection

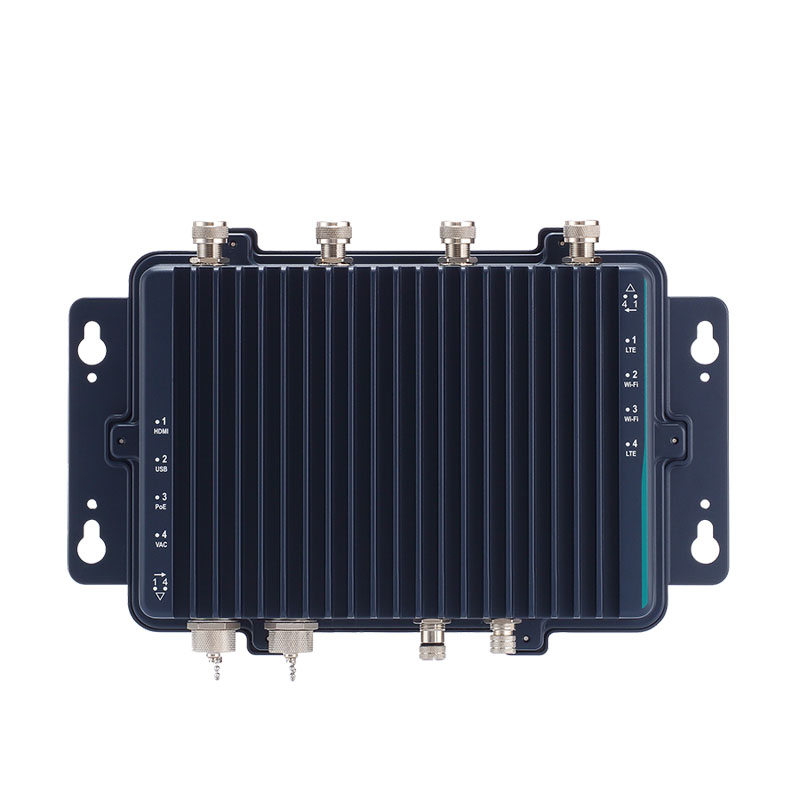

- 4 N-jack antenna openings with water-proof design

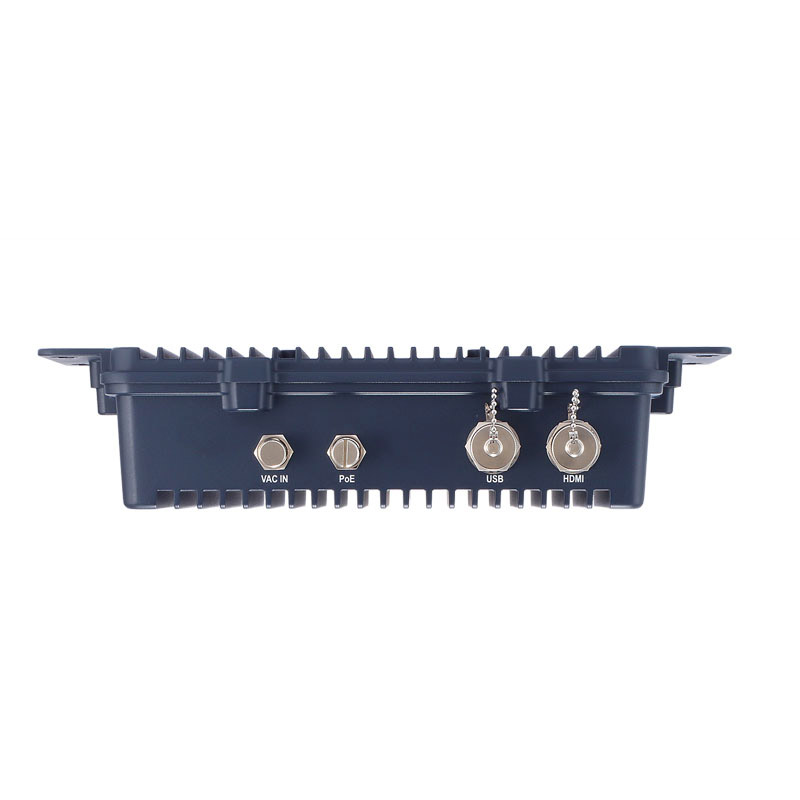

- Features M12 lockable I/Os
- 1 IEEE 802.3at GbE PoE (30W)
產品簡介
The AIE800-904-F adopts the NVIDIA® Jetson Xavier™ NX platform which has a powerful 6-core NVIDIA Carmel ARM® v8.2 (64-bit) processor and 384-core NVIDIA Volta™ GPU. In addition to the superior performance and power advantage of accelerated computing, the AIE800-904-FL is designed with a high IP67 degree of protection from water and dust ingress. Moreover, it comes with a wide operating temperature range of -30°C to 50°C and a vibration endurance for up to 3Grms. It also features M12 type I/O connectors and four waterproof N-jack antenna openings for operational stability in rugged environments. The AIE800-904-FL has 8GB of LPDDR4x memory and 16GB eMMC onboard. It comes with a wide range 100 to 240V AC power input with 10kV surge protection. The AI inference system features one M.2 Key B 2242 SSD socket with a high-speed PCIe 2.0 x2 NVMe interface for extensive storage needs. In addition, the embedded box PC is equipped with one GbE PoE port for IP camera video surveillance solutions including traffic flow monitoring, license plate recognition, vehicle recognition, intrusion detection and access control. The NVIDIA Jetson-based outdoor edge AI system is the perfect platform for traffic management, city security, smart manufacturing, and more.
