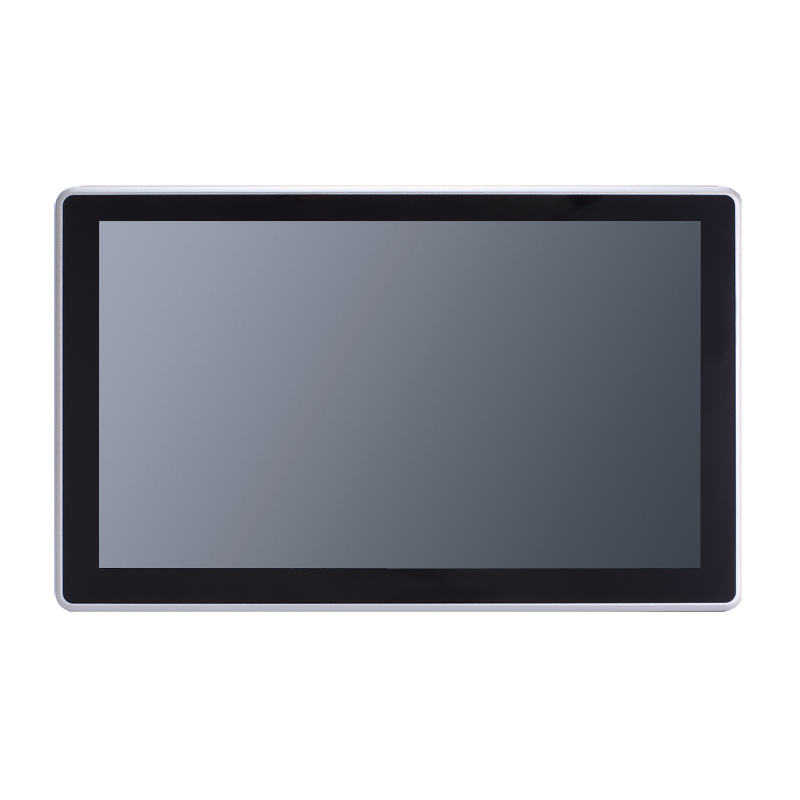

| LCD Panel |
- 15.6" WXGA TFT
- 400 nits
- 1366 x 768 pixels
|
| CPU |
- LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® Gold or Intel® Celeron® processor (up to 35W)
|
| Chipset |
|
| System Memory |
- 1 x 260-pin DDR4-2666/2400 SO-DIMM, up to 32GB
|
| BIOS |
|

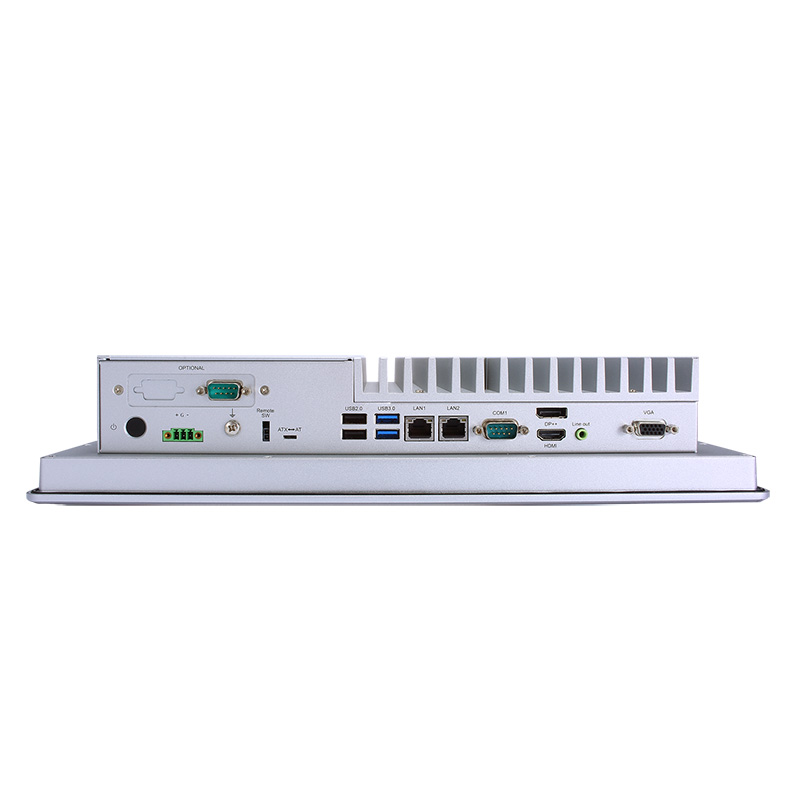

| COM |
- 1 x 9-pin D-sub Male for RS-232
- 1 x COM for RS-232/422/485
|
| USB |
|
| Ethernet |
- 2 x 10/100/1000 Mbps Ethernet
|
| Display |
- 1 x HDMI
- 1 x DisplayPort
- 1 x VGA
|
| Audio |
|
| Storage |
- 1 x mSATA
- 1 x Removable 2.5” SATA HDD/SSD (7 mm or 9.5 mm height)
|
| Expansion |
- 1 x Full-size PCI Express Mini Card slot (PCIe + SATA + USB)
- 1 x M.2 Key E 2230 (for Wi-Fi)
|
| Others |
- 1 x Phoenix type connector for DC power input
- 1 x Switch for power on/off (ATX)
- 1 x Remote power switch
- 1 x AT/ATX switch (DC type only)
- 1 x Grounding hole (DC Version)
- TPM 2.0
|
| Touchscreen |
- Projected capacitive multi-touch
|
| Front Bezel |
|
| Power Supply |
- +12V/+19V/+24VDC
- 1 x Terminal block
|
| Power Comsumption |
|
| Watchdog Timer |
- 255 levels, 0 to 255 sec.
|
| Operating Temperature |
- 0°C to +50°C (+32°F to +122°F)
|
| Relative Humidity |
- 20% to 90% @ +40°C; non-condensing
|
| Vibration |
- 1G, 10 - 500 Hz, random for 2.5" SATA HDD
|
Dimensions
(W x D x H) |
- 396.8 x 77 x 247.1 mm (15.6" x 3.04" x 9.73")
|
| Weight (net/gross) |
- 6.5 kg(14.3 lb)/8.5kg(18.7 lb)
|
| Certifications |
- CE, EN 61000-6-2, EN 61000-6-4
|
| EOS |
|

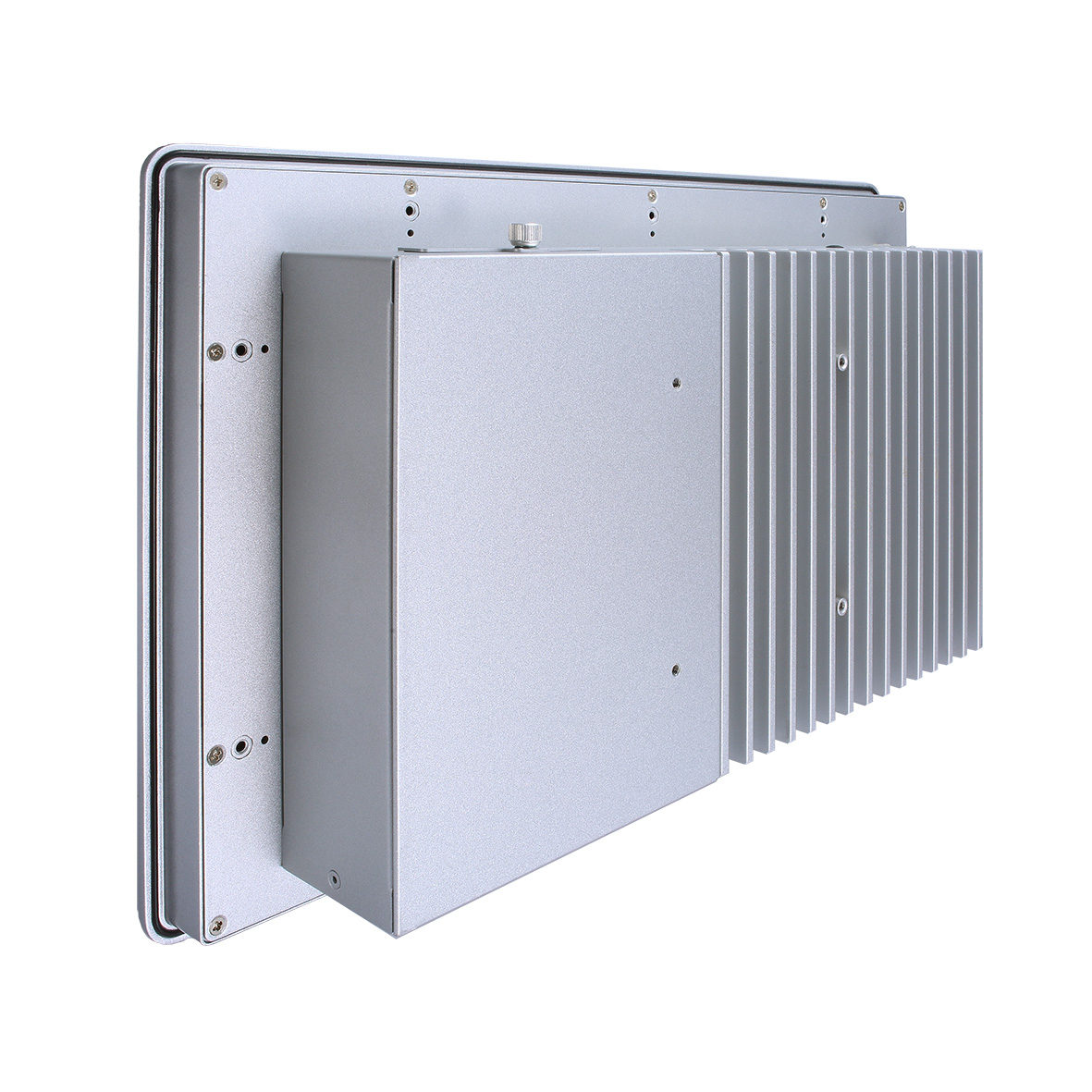

| Mounting |
- Panel mount
- Wall mount
- VESA arm
|
