| AI Accelerator |
|
| CPU |
- Dual-Core NVIDIA Denver 2 64-Bit CPU and Quad-Core Arm® Cortex®-A57 MPCore processor
|
| GPU |
- 256-core NVIDIA Pascal™ GPU
|
| Chipset |
|
| System Memory |
- 4GB 128-bit LPDDR4 51.2GB/s
|
| COM |
|

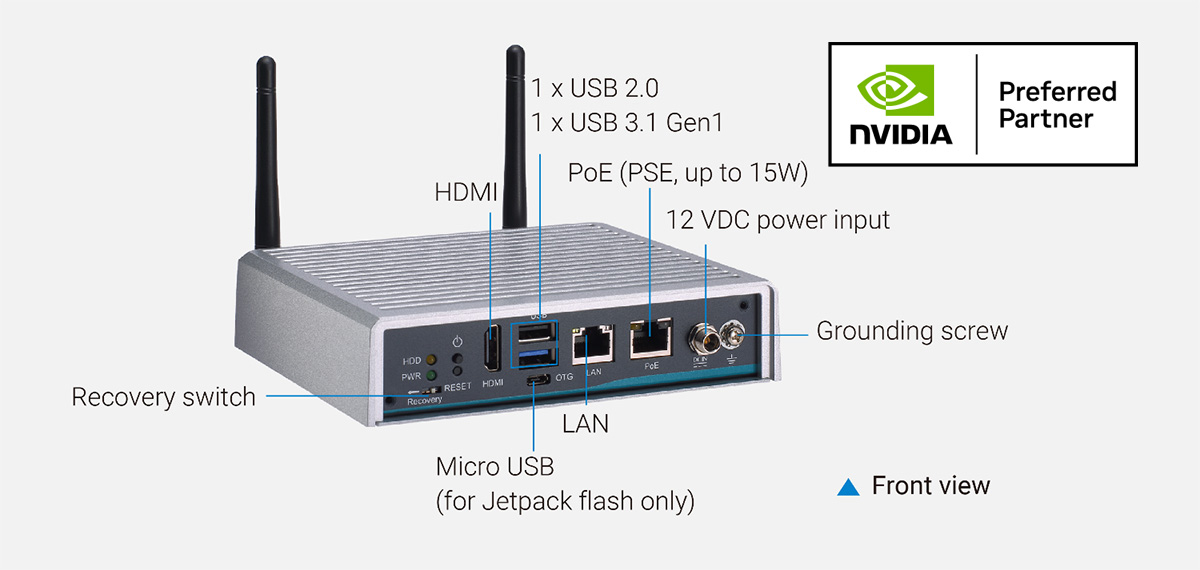

| USB |
- 1 x USB 3.1 Gen1, 1 x USB 2.0
- 1 x Micro USB
|
| Ethernet/PoE |
- 1 x 10/100/1000 Mbps Ethernet (Via Jetson™ TX2 NX)

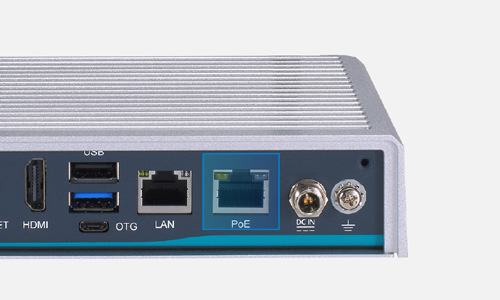

- 1 x 10/100/1000 Mbps PoE (Intel® i210-IT; max. up to 15W)
|
| Display |
- 1 x HDMI 2.0 with 4K2K supported
|
| Digital I/O |
|
| Audio |
|
| Storage |
- Onboard 16GB eMMC (via Jetson™ TX2 NX)
- 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
- 1 x Micro SD slot
|
| Expansion |
- 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
- 1 x SIM slot
|
| Others |
- 1 x Recovery switch
- 1 x Reset button
- 1 x Power button
- 1 x 12 VDC power input connector

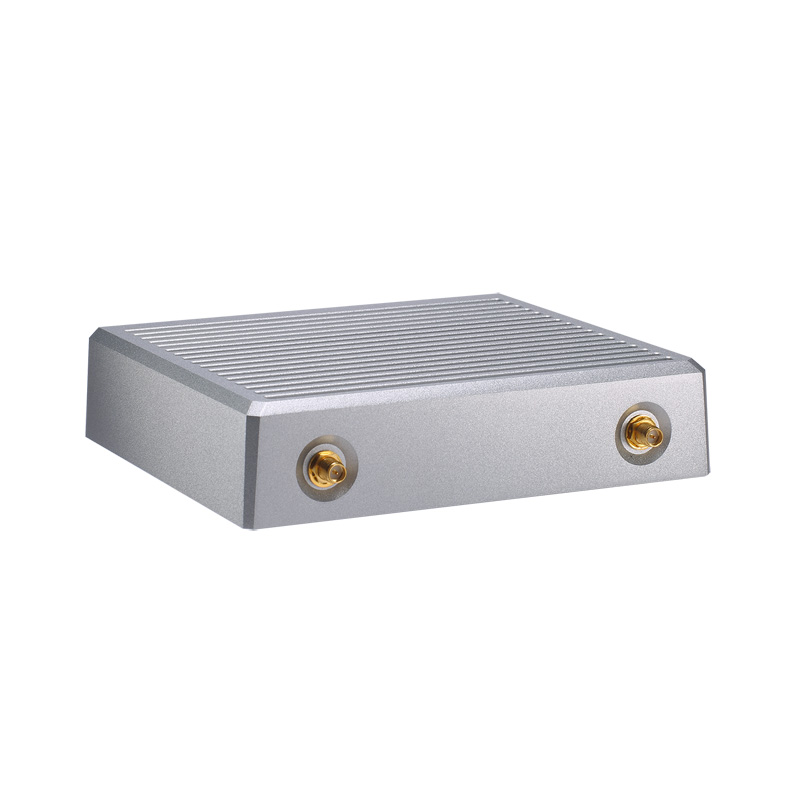

- 2 x SMA-type antenna connector
|
| Power Supply |
|
| Watchdog Timer |
|
| Construction |

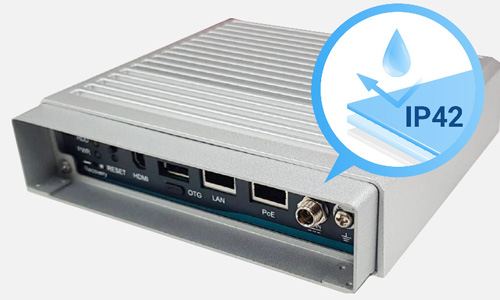

- Aluminum extrusion and heavy-duty steel, IP40
|
| Operating Temperature |
- -30°C to +60°C (-22°F to +140°F)
|
| Relative Humidity |
- 10% - 95%, non-condensing
|
| Vibration |
- 3 Grms with M.2 (5 to 500Hz, X, Y, Z directions)
|
| Dimensions (W x D x H) |
- 148.6 mm (5.85") (W) x 129.8 mm (5.11") (D) x
- 34.6 mm (1.36") (H)
|
| Weight (net/gross) |
- 1 kg (2.20lb)/1.6 kg (3.52lb)
|
| Certifications |
|
| EOS Support |
|
| Mounting |
- Wall mount kit
- DIN-rail kit
- VESA mount kit
|
