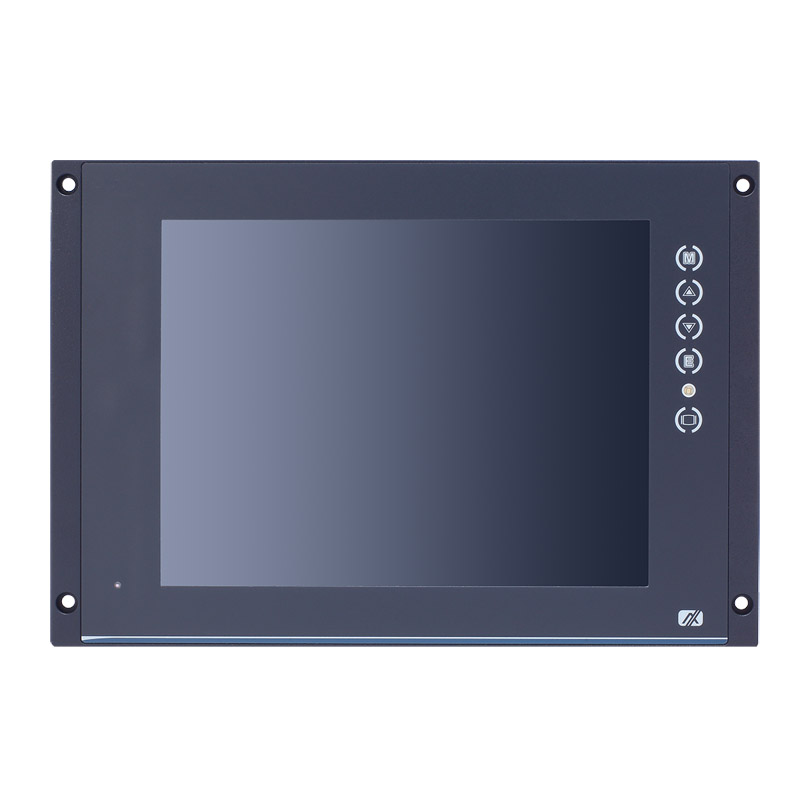

| Front Bezel |
- IP65-rated aluminum front bezel and IP40-rated rear protection
|
| LCD Panel |
|
| Max Colors |
|
| Active Area (mm) |
|
| Max. Resolution |
|
| Input Signal |
- VGA
- HDMI
- DVI-D
- RS-232 for touchscreen and IR remote control
|
| Pixel Pitch (mm) |
|
| Backlight MTBF (hrs) |
|
| Viewing Angle (H/V) |
|
| Response Time |
|
| Contrast Ratio |
|
| LCD Brightness (cd/m²) |
|
| Display Control |
|

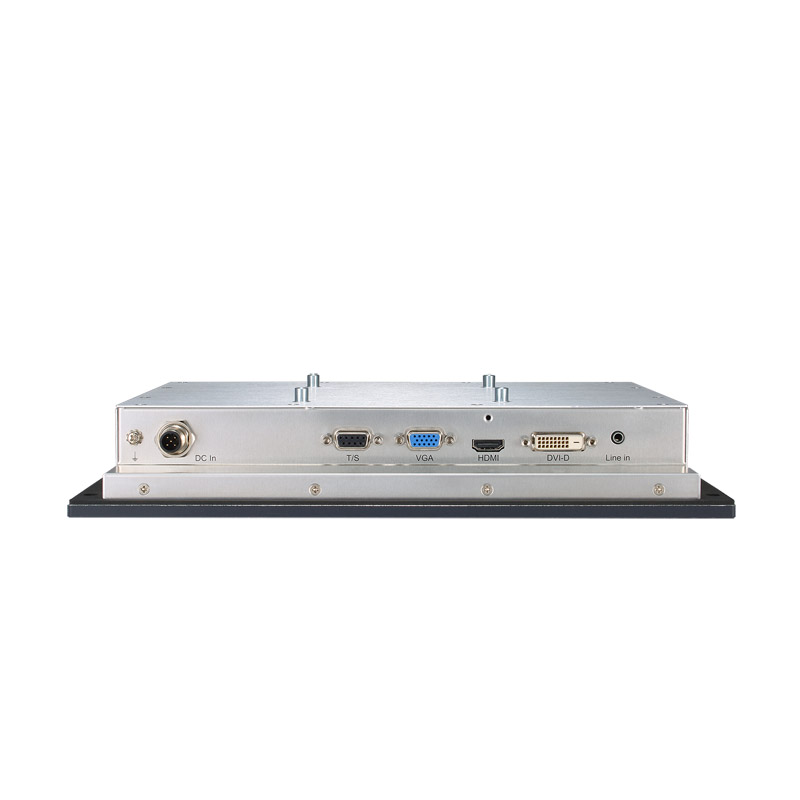

| I/O Interface |
- 1 x RS-232 for touchscreen and remote control
- 1 x M12 A-coded Male 5-pin DC-in
- 1 x DVI - D
- 1 x VGA
- 1 x HDMI
- 1 x Line-in
|
| Touchscreen |
- 5-wire resistive touchscreen
- Thickness: 2.2 mm
- Light Transmission: 80%
- Touch Life: 35 million touches
- Controller Interface: RS-232 DB9 male connector
|
| Power Supply |
|
| Relative Humidity |
- 20% to 90% @ +40°C, non-condensing
|
| Operating Temperature |
- -25°C to +55°C (-13°F to +131°F)
|
| Dimensions (W x D x H) |
- 310 x 49.2 x 214 mm (12.20" x 1.94" x 8.43")
|
| Weight (net/gross) |
- 1.85 kg (4.08 Ib)/3.29 kg (7.26 lb)
|
| Mounting |
|
| Certifications |
- CE, FCC, EN 50155, EN 50121-3-2, EN 61373, and EN 45545-2 certified
|
