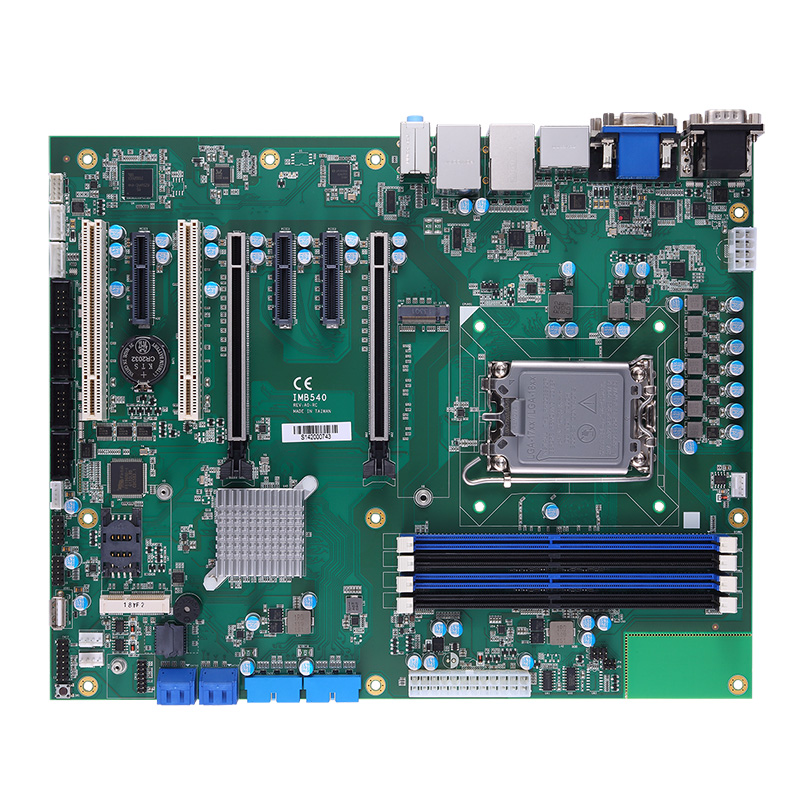

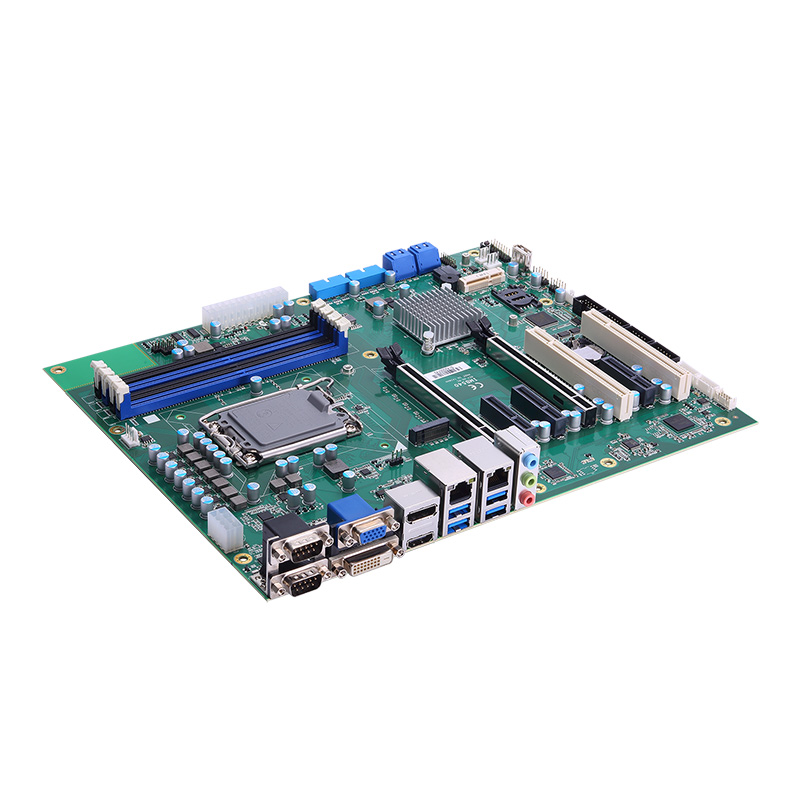

| CPU |
- LGA1700 socket 14th/13th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor, up to 125W (Raptor Lake-S Refresh)
|
| Chipset |
|
| System Memory |
- 4 x 288-pin DDR4-3200 ECC/Non-ECC un-buffered Long-DIMM, up to 128GB (ECC memory is available for Intel® R680E only)
|
| BIOS |
|
| COM |
- 4 x RS-232 (internal box header)
- 2 x RS-232/422/485 (rear I/O)
|
| USB |
- 4 x USB 3.2 Gen2x1 (10Gbps, rear I/O)
- 2 x Dual USB 3.2 Gen1x1 (5Gbps, internal box header)
- 4 x USB 2.0 (internal pin header)
- 1 x USB 2.0 (internal 180D type A)
|
| Ethernet |
- 1 x 10/100/1000/2500 Mbps (Intel® I225-LM; Intel® AMT with Intel vPro®)
- 1 x 10/100/1000 Mbps (Intel® I210-AT)
|
| Display |
- 1 x VGA
- 1 x HDMI 1.4b
- 1 x Displayport++ (DP 1.2)
- 1 x DVI-D
|
| Digital I/O |
|
| Audio |
- HD Codec audio as MIC-in/Line-in/Line-out
|
| Storage |
- 4 x SATA-600 with RAID 0/1/5/10
- M.2 Key M 2280 in support of PCIe x4 via CPU
|
| Expansion |
- 2 x PCIe Gen5 x16 slot (signal: PCIe x16 + PCIe x0 or PCIe x8 + PCIe x8)
- 3 x PCIe x4 slot open ended (1 x Gen3 + 2 x Gen4) (signal by PCH)
- 1 x PCIe Mini Card slot (signal: PCIe x1)
- 2 x 32-bit PCI slot, default clock is 33 Mhz, PCI clock could be selected between 33 or 66 MHz by jumper (signal by PCH)
|
| Others |
- 1 x PS/2 keyboard (internal box header)
- 1 x PS/2 mouse (internal box header)
|
| Battery |
|
| TPM |
|
| Watchdog Timer |
- 255 levels, 1 to 255 sec.
|
| Hardware Monitoring |
|
| Operating Temperature |
- 0°C to +60°C (+32°F to +140°F)
|
| Relative Humidity |
- 10% to 95% relative humidity, non-condensing
|
| Dimensions |
|
| Board Thickness |
|
| Certifications |
|
