產品特色

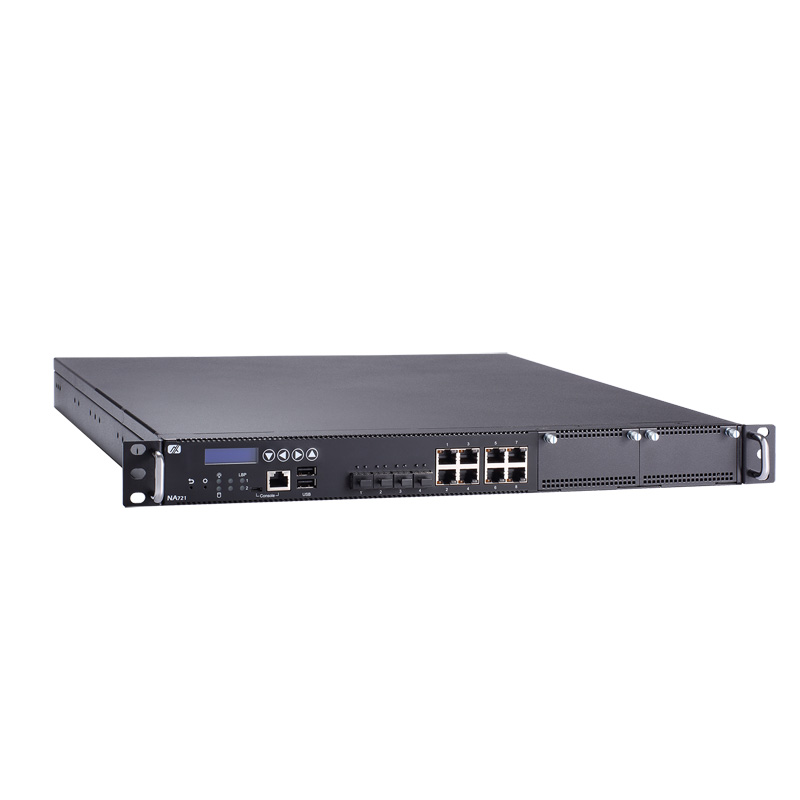

- Intel® Xeon® processor D-1700 family
- 6 DDR4-2933 R-DIMM/U-DIMM, up to 384GB memory
- Four 10GbE SFP+, four 2.5GbE and four 1GbE RJ-45 onboard
- 2 expandable LAN modules in support of 1GbE/10GbE/25GbE/40GbE/Fiber/Copper/Bypass (optional)
- Supports 1U redundant power supply (optional)
- Supports IPMI (optional)
- Suitable for enterprise firewall, network bandwidth controller, and UTM applications
產品簡介
The CAPA500 features the LGA1151 socket 7th generation Intel® Core™ processor family (codename: Kaby Lake) with 35W TDP (thermal design power), as well as the Intel® H110 chipset (Q170 optional). The CAPA500 supports one 260-pin DDR4-2400 SO-DIMM with a memory capacity up to 16GB for extensive storage. The compact 3.5-inch embedded motherboard also offers display outputs through HDMI, VGA and LVDS for triple independent display applications. Moreover, the compact-sized embedded board runs on +12 VDC power, supporting auto power-on. It can operate at a wide range of temperatures from -20°C to 60°C under active thermal control. The 146 mm x 104 mm embedded SBC is suitable for IoT/M2M-related, industrial control, self-service terminal, digital signage, POS, kiosk and many other applications where high-speed processing and graphics performance under limited space is required.
