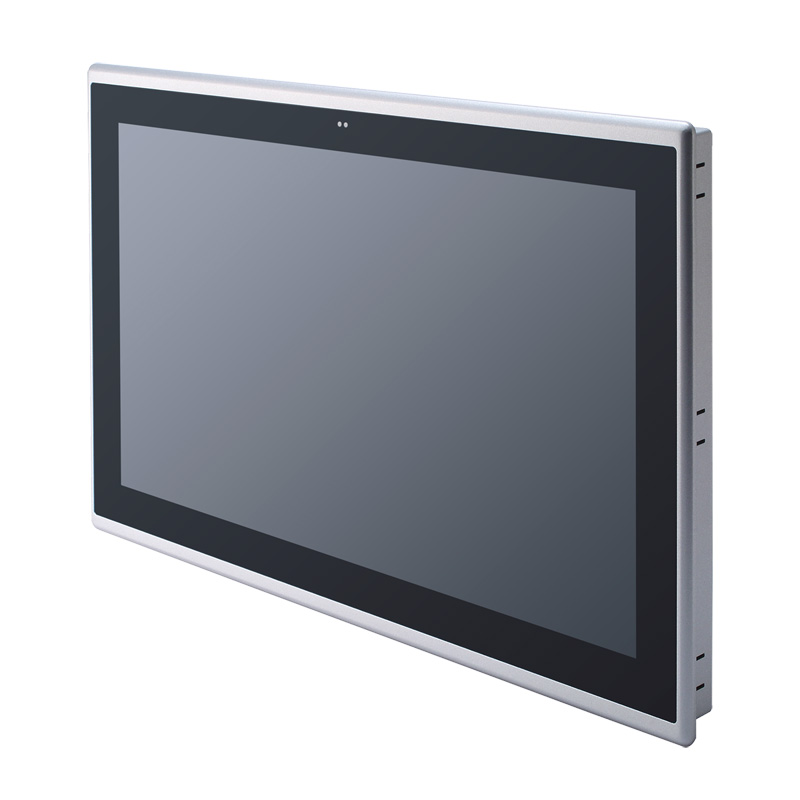

LCD Panel |
- 18.5" FHD TFT LCD
- 350 nits
- 1920 x 1080 pixels
|
CPU |
- Intel® Celeron® processor J6412 (TDP 12W) (Elkhart Lake)
|
Chipset |
|
System Memory |
- 1 x 260-pin DDR4 2133/2400/2666/3200 SO-DIMM, up to 32GB
|
BIOS |
|

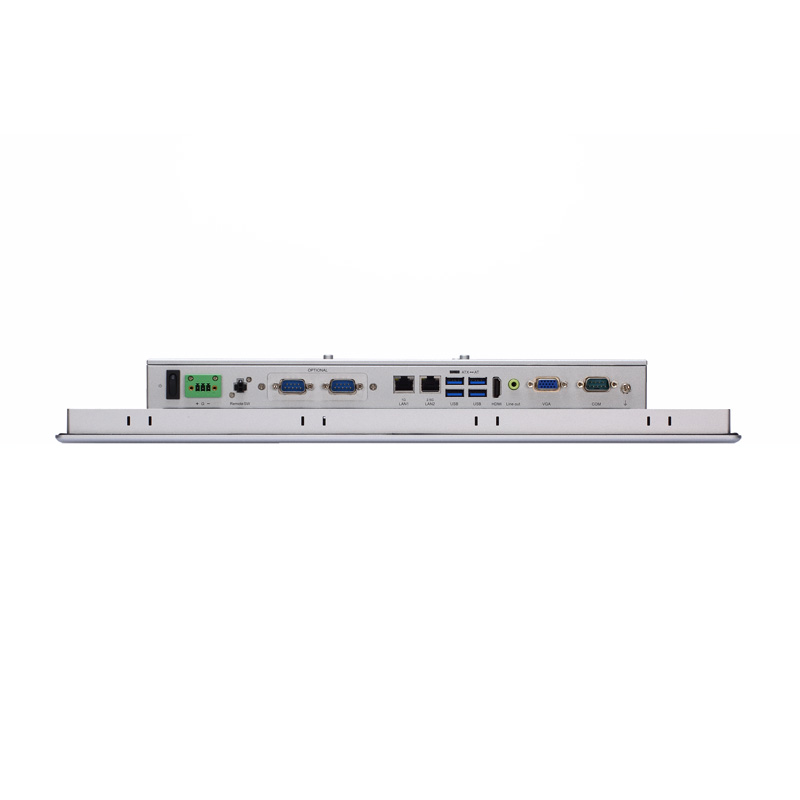

COM |
|
USB |
- 1 x Flexible I/O (default 2 x RS-232)
- 4 x USB 3.2 Gen2 (10 Gbps)
|
Ethernet |
- 1 x RJ-45 2.5Gb Base-T Ethernet (Intel® I226-LM with TSN)
- 1 x RJ-45 1Gb Base-T Ethernet (Intel® I210-AT)
|
Display |
|
Audio |
|
Storage |
- 1 x mSATA
- 1 x 2.5” SATA SSD (7 mm and 9.5 mm height; removable)
|
Expansion |
- 1 x Full-size PCI Express Mini Card slot (PCIe + SATA + USB)
- 1 x M.2 Key E 2230 (for Wi-Fi)
- 1 x Flexible I/O (default 2 x RS-232)
|
Others |
- dTPM 2.0
- 1 x Phoenix-type connector for DC power input
- 1 x Switch for power on/off (ATX)
- 1 x Remote power switch
- 1 x AT/ATX switch (DC type only)
- 1 x Grounding hole (DC version)
|
Touchscreen |
- Projected capacitive multi-touch
|
Front Bezel |
|
Power Supply |
- 9 to 36VDC
- 1 x Terminal block
|
Power Comsumption |
|
Watchdog Timer |
- 255 levels, 0 to 255 sec.
|
Operating Temperature |
- -10°C to 50°C (+14°F to +122°F)
|
Relative Humidity |
- 20% to 90% @ +40°C; non-condensing
|
Vibration |
- 1G, 5 to 500Hz, random for 2.5" SATA SSD
|
Dimensions (W x D x H) |
- 475 x 59.4 x 302 mm (18.7 " x 2.3" x 11.89")
|
Weight (net/gross) |
- 5.91 kg (13.02 lb)/ 7.95 kg (17.52 lb)
|
Certifications |
- CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A
|
EOS |
- Windows® 10 IoT, Windows® 11 IoT, Linux
|

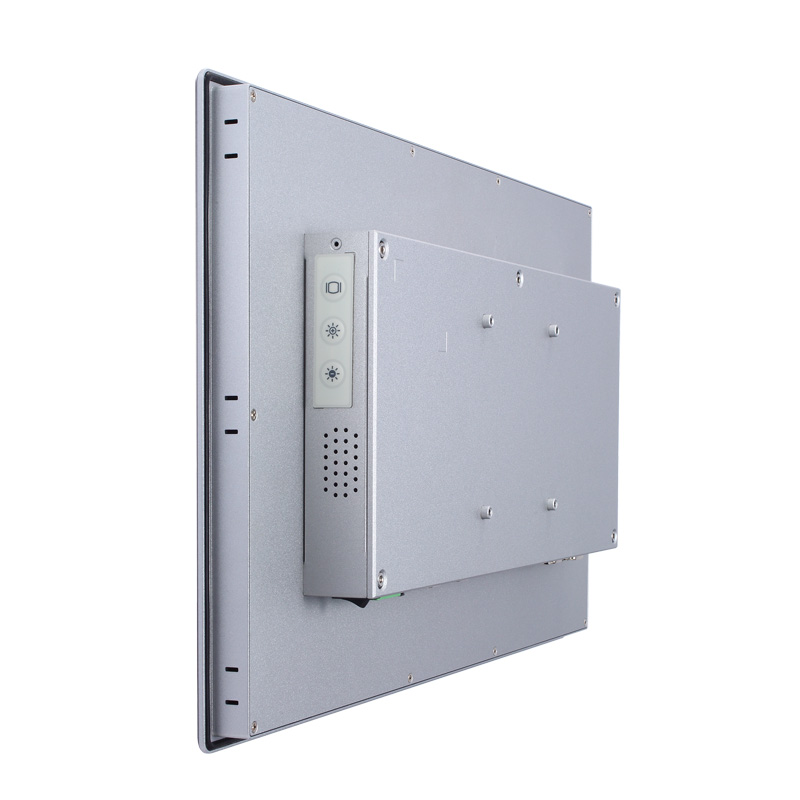

Mounting |
- Panel mount
- VESA mount
- Desktop stand
- Wall mount
|
