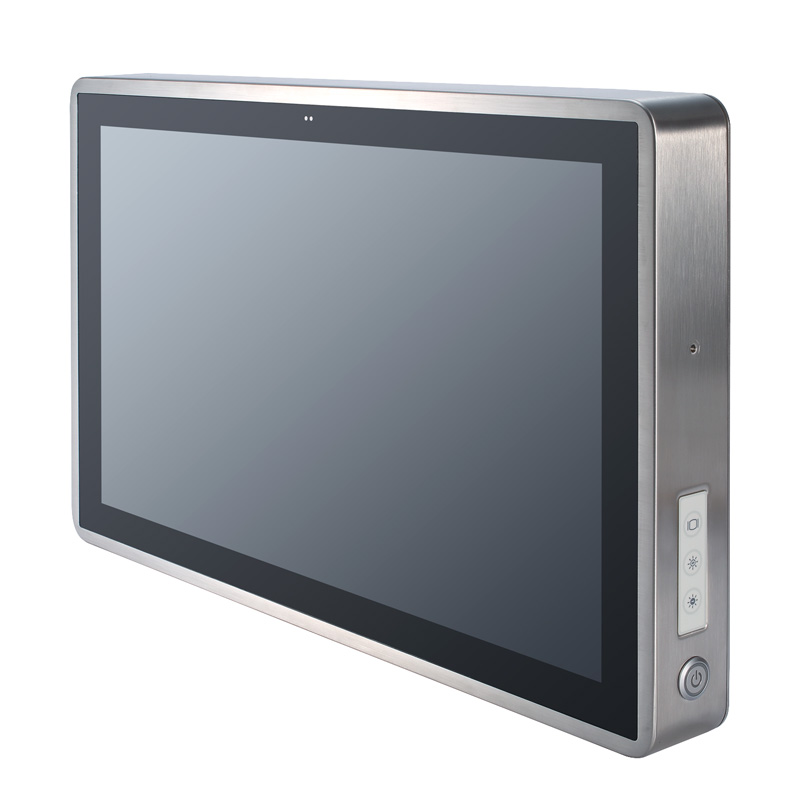

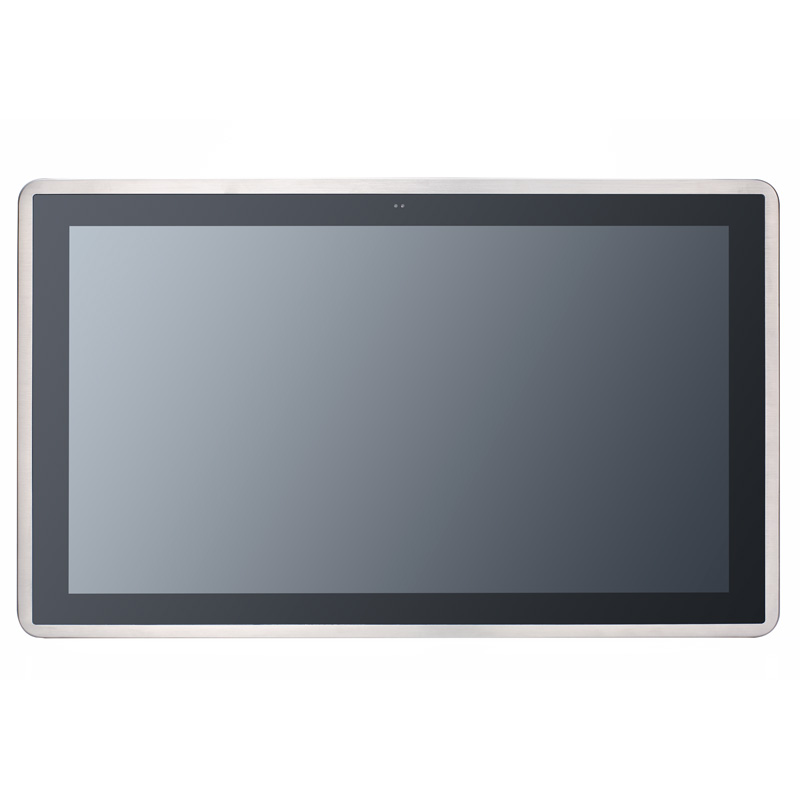

LCD Panel |
- 21.5" FHD TFT LCD
- 400 nits
- 1920 x 1080 pixels
|
CPU |
- Intel® Core™ i5-1145G7E 2.6 GHz or Celeron® 6305E 1.8GHz
|
Chipset |
|
System Memory |
- 1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB
|
BIOS |
|
COM |
- 2 x RS-232/422/485 (default RS-232, A-coded)
|
USB |
|
Ethernet |
- 1 x 2.5GBASE-T Ethernet with Intel® I225 (TSN and X-Coded)
|
Display |
|
Audio |
|
Storage |
- 1 x 2.5" SATA SSD (9.5mm height)
|
Expansion |
- 1 x M.2 Key E 2230 slot (with PCIe x1 and USB 2.0 supported)
|
Others |
|
Touchscreen |
- Projected capacitive multi-touch
|
Enclosure |
- Stainless steel (SUS) 304 or 316 (optional)
|
Power Supply |

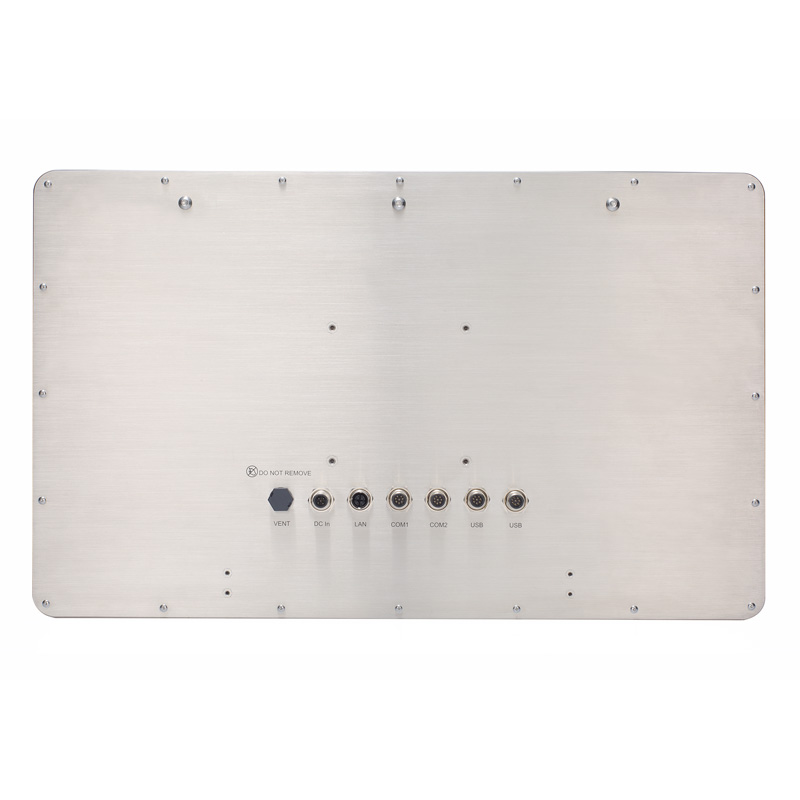

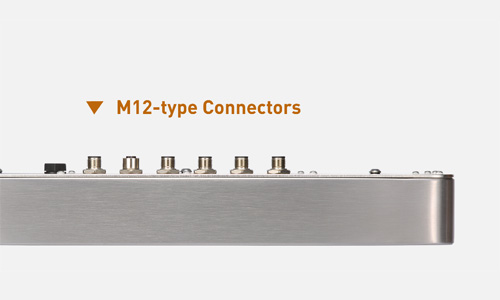

- 1 x DC power connector (M12)
- 12 to 24 VDC
|
Power Comsumption |
|
Watchdog Timer |
- 65536 levels, 0 to 65535 sec.
|
Operating Temperature |
- -20°C to +50°C (-4°F to +122°F)
|
Relative Humidity |
- 10% - 95% @ +40°C, non-condensing
|
Vibration |
- 1G, 5 - 500Hz, random for 2.5" SSD
|
Dimensions (W x D x H) |
- 552 x 55 x 338.4 mm (21.73" x 2.2" x 13.33")
|
Weight (net/gross) |
- 9.0 kg (19.84 lb) /12 kg (26.46 lb)
|
Certifications |
- CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A

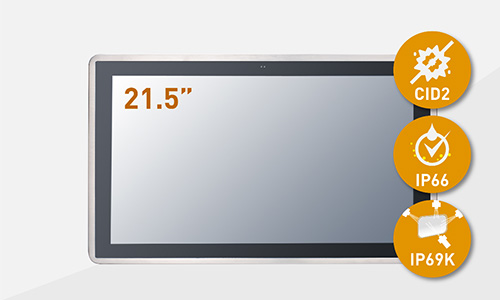

- C1D2 compliance (must install I/O cover, 882B815A0A0E/882B815A1A0E)
|
EOS |
- Windows® 10 IoT, Windows® 11 IoT
|
Mounting |
|
