Standards |
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX/FX
- IEEE 802.3az Energy Efficient Ethernet
- IEEE 802.1p Quality of Service (QoS)
|
Forward/ Filtering Rate |
- 14,880pps for 10Mbps
- 148,810pps for 100Mbps
|
Packet Buffer Memory |
|
Address Table Size |
|
Processing Type |
- Store-and-Forward
- Auto-Negotiation
- Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
- Auto MDI/MDIX
|
Interface of Ethernet |
|

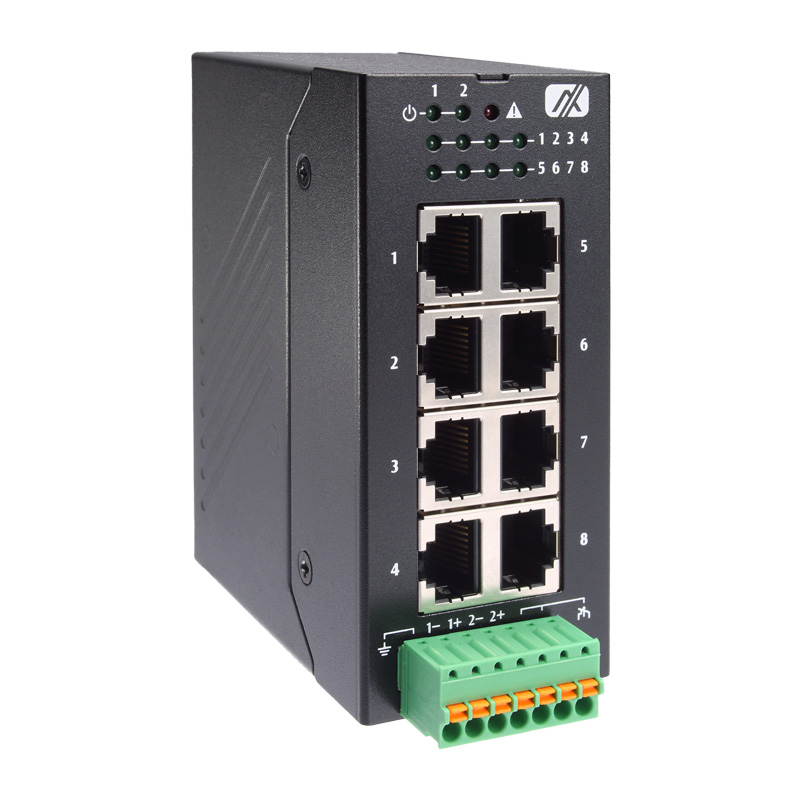

LED Indicators |
- Per Unit: Power 1 (Green), Power 2 (Green), Fault (Red)
- Per Port: Link/Activity (Green)
|
Power Input |
- 9-55VDC, 3.4W max. (Terminal Block) with Reverse Polarity Protection
|
Operating Temperature |
- -40°C to 75°C (-40°F to 167°F)
|
Dimensions (W x D x H) |
- 45 x 75 x 100mm (1.77" x 2.95" x 3.94")
|
Weight |
|
Installation |

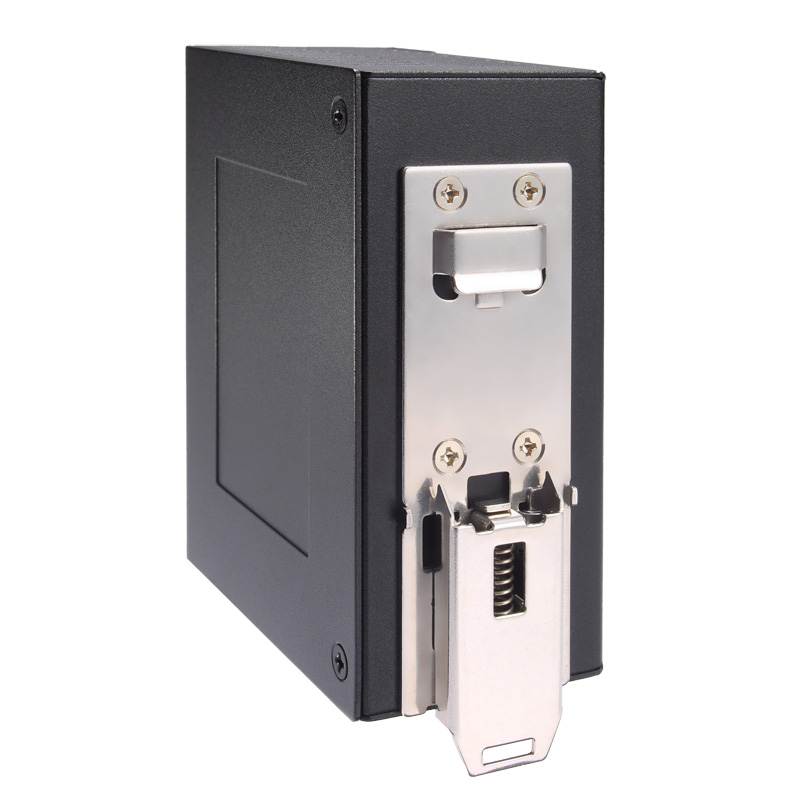

- DIN-Rail (Top hat type 35mm) mounting
|
EMI |
- FCC Part 15B Class A
- EN 61000-6-4
- ICES-003
|
EMS |
- EN 61000-4-2 (ESD Standards)
- EN 61000-4-3 (Radiated RFI Standards)
- EN 61000-4-4 (Burst Standards)
- EN 61000-4-5 (Surge Standards)
- EN 61000-4-6 (Induced RFI Standards)
- EN 61000-4-8 (Magnetic Field Standards)
|
