產品特色

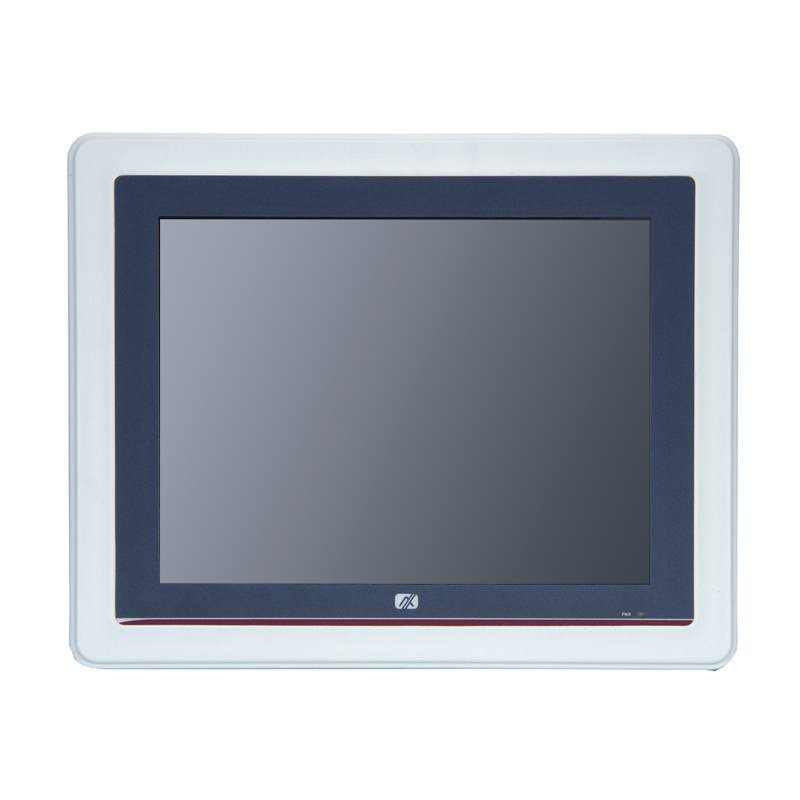

- 10.4" XGA/SVGA TFT LCD display with LED backlight
- Fanless design with Intel® Celeron® processor J1900 and internal antenna
- 2 GbE LAN, 4 USB and 2 COM
- Plastic and IP65-rated front bezel
- Supports RFID (optional)
- Supports panel mount/wall mount/VESA arm
產品簡介
The CEM846 COM Express type 10 Mini module is powered by the Intel® Atom™ processor E3800 family (codename: Bay Trail) with Intel® HD graphics (Gen 7with 4EU) engine. The CEM846 addresses the need for modular and small form factor computing platform that provides flexibility and scalability, and aimed at operating in an extended range of temperature. The computer on module is only 84mm x 55 mm form factor which supports onboard 4 GB DDR3L memory, wide voltage, rich I/O, and four lanes of PCle interfaces. From all these features together, the Intel® Atom™-based COM Express type 10 CPU module can be widely applied to IIoT (Industrial Internet of Things), medical, transportation, security, military, portable device and many more.
