產品特色
- LGA1151 Socket 7th/6th gen Intel® Core™ processor
- Intel® Q170/H110 chipset
- 2 DDR4-2400 un-buffered DIMM for up to 32GB of memory
- Intel® AMT 11 (Q170)
- Optional TPM supported
- PCIe Gen3 at 8GT/s supported
- Intel® vPro supported
- 6 SATA-600 with RAID 0/1/5/10 (Q170)
產品簡介

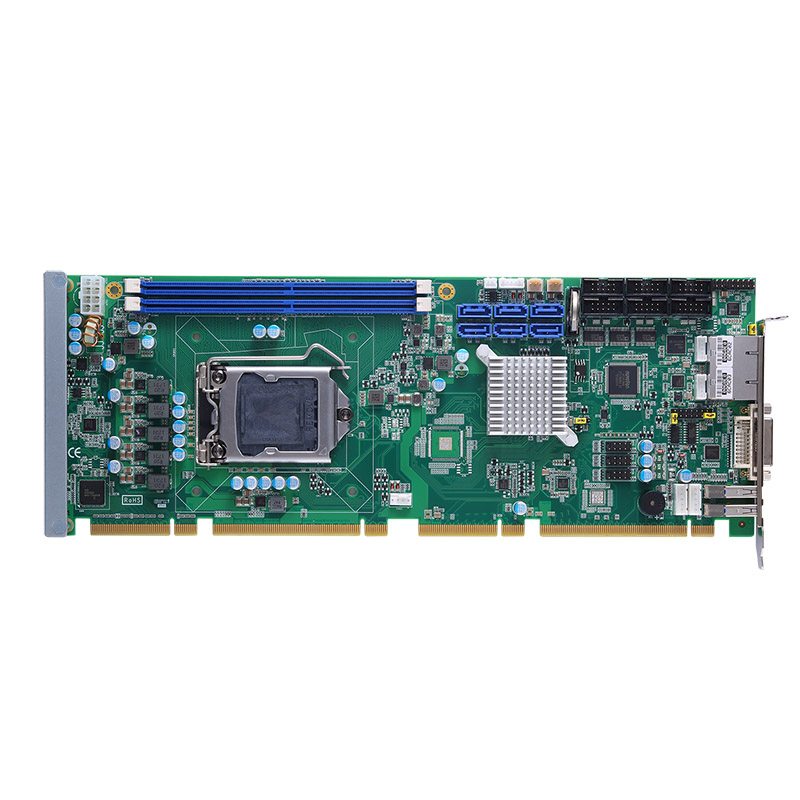

The SHB140 PICMG 1.3 single board computer is based on the 14nm 6th generation Intel® Core™ i7/i5/i3 processors in the LGA1151 package with Intel® Q170 Express chipset (codename: Skylake). The high performance SHB-based CPU card comes with two DDR4 2133/2400 MHz up to 32GB and six SATA-600 ports with RAID 0/1/10/5. Combined high-bandwidth PCI Express for frame grabbing and conventional PCI expansion for motion capture, the SHB140 is an optimum solution for machine vision and automation applications. This high performance PICMG 1.3 slot CPU card also features an integrated Intel® AMT 11 and TPM 1.2 for higher security and easier maintenance.
