產品特色
- LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor, up to 65W (codename: Kaby Lake/Skylake)
- Intel® Q170 chipset
- Supports 4 expansion slots
- Power input: 24 VCD (uMin=19V/uMax=30V)
- Compact & front I/O design
- -10°C to +60°C operating temperature range
- Supports 2 swappable 2.5" HDD & RAID 0,1
- Supports ECM BIOS setting
- Supports WLAN module & antenna (optional)
- Supports TPM 2.0
產品簡介

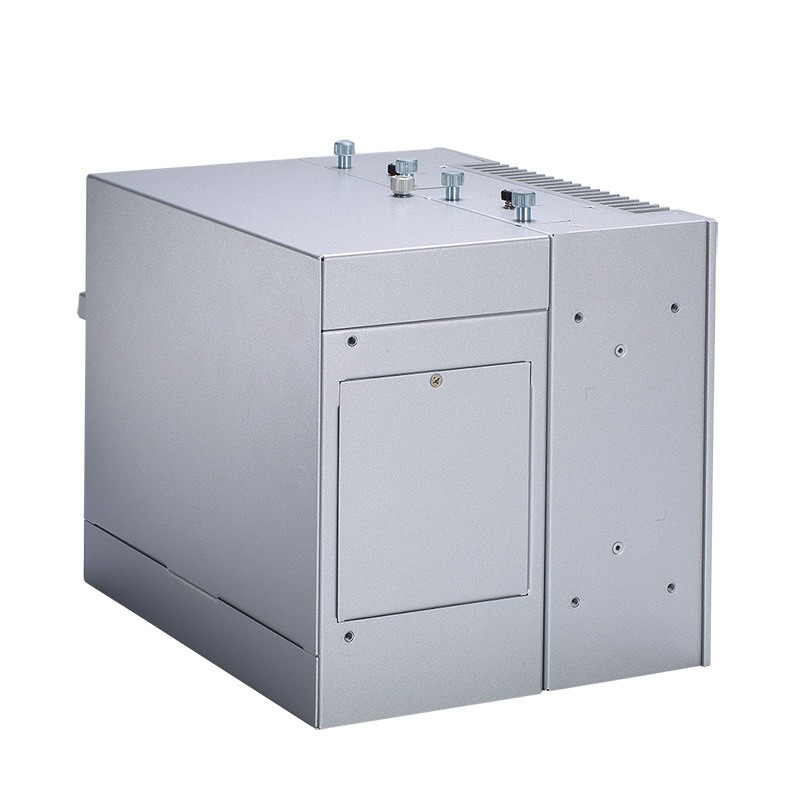

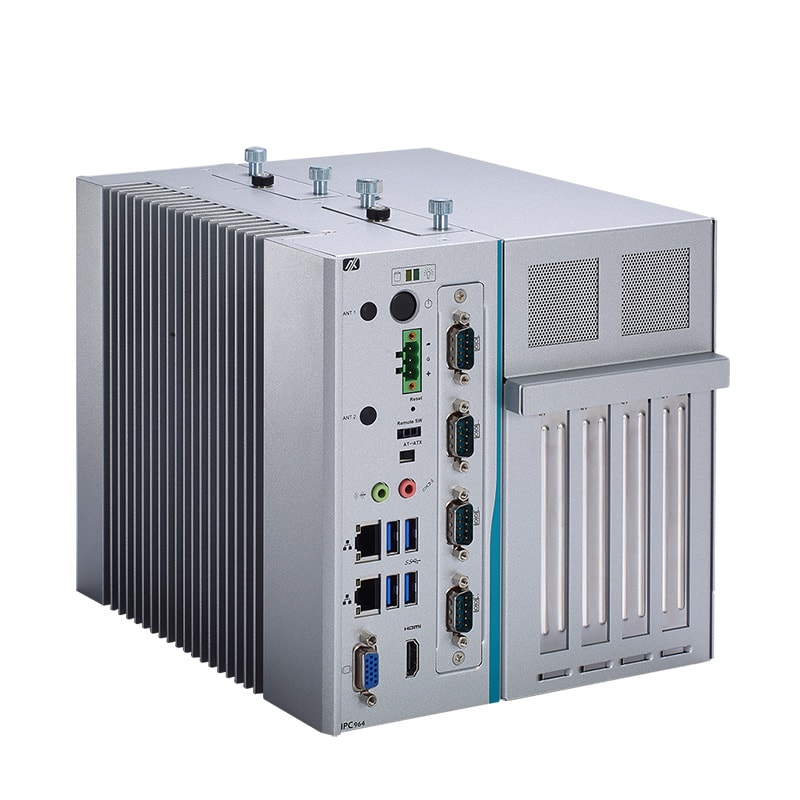

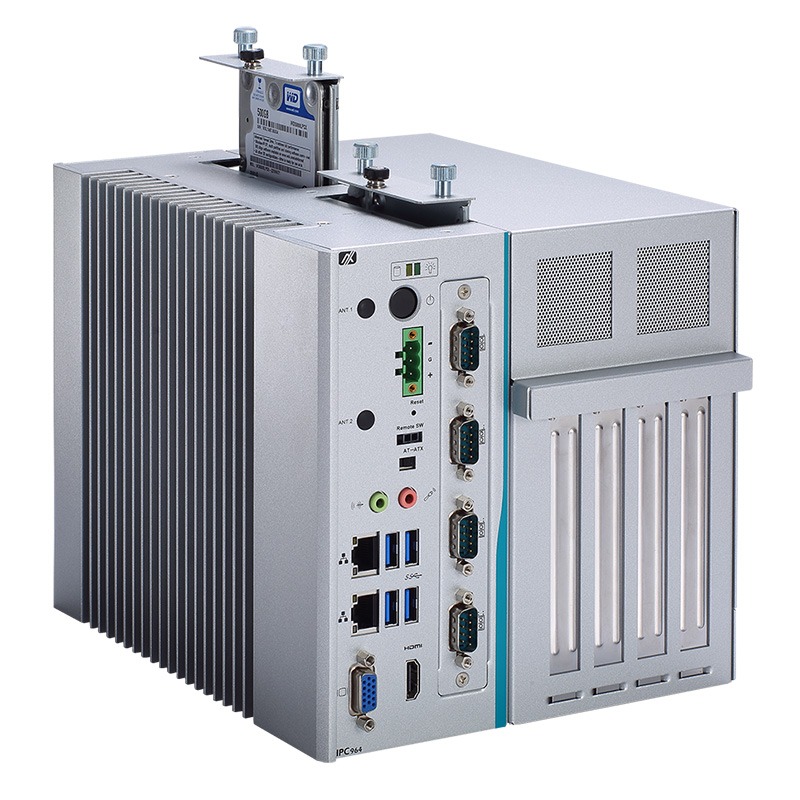

The IPC964-512-FL is a 4-slot fanless barebone system with modular design and optimized expandability. The rugged industrial PC supports the high-performance 7th/6th generation Intel® Core™ and Celeron® processors with the Intel® Q170 chipset. The IPC964-512-FL features dual DDR4-2133 SO-DIMM slots with up to 32GB memory. For easy cabling and maintenance, the embedded system features a wide choice of front-accessible I/O interfaces, including two Gigabit LAN ports, four USB 3.0 ports, one VGA, one HDMI, one audio (Mic-in/Line-out), and three optional I/O modules - a 4-port isolated RS-232/422/485 module, an isolated 8-in/8-out DIO module, and a 2-port isolated RS-232/422/485 and 4-in/4-out DIO module. The compact industrial PC also provides four flexible PCI/PCIe expansion slots with three different combinations of expansion kits: one PCIe x16 and one PCIe x4; one PCIe x16 and one PCI; and two PCI. Additionally, it has a full-size PCI Express Mini Card slot for 3G/4G, GPS, Wi-Fi and Bluetooth connections, and comes with two easy-swappable 2.5” HDD trays for storage. To fit various industrial environments, the rugged modular industrial PC supports 24VDC (uMin=19V/uMax=30V) power input with a lockable terminal block-type connector and a wide operating temperature range of -10°C to +60°C.
